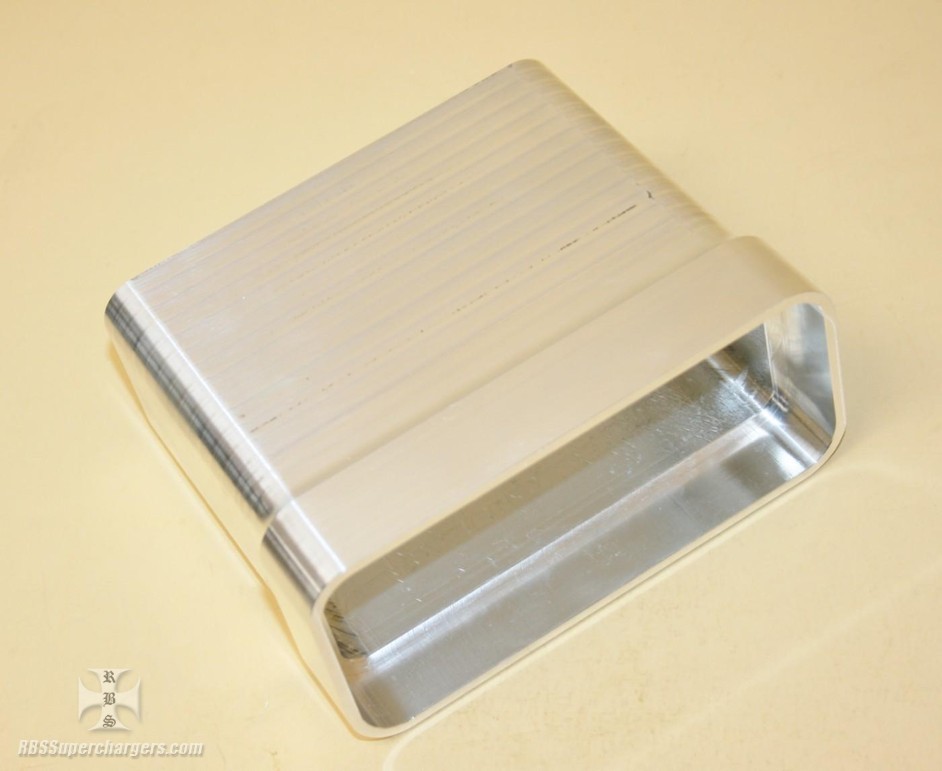

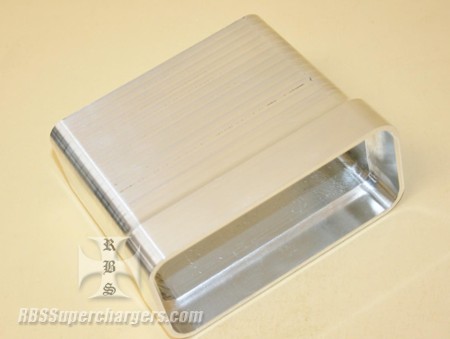

Burst Panel Diverter Alum. Chimney Extension 4.750"

Categories:
Superchargers
Manifolds
1320 INC.

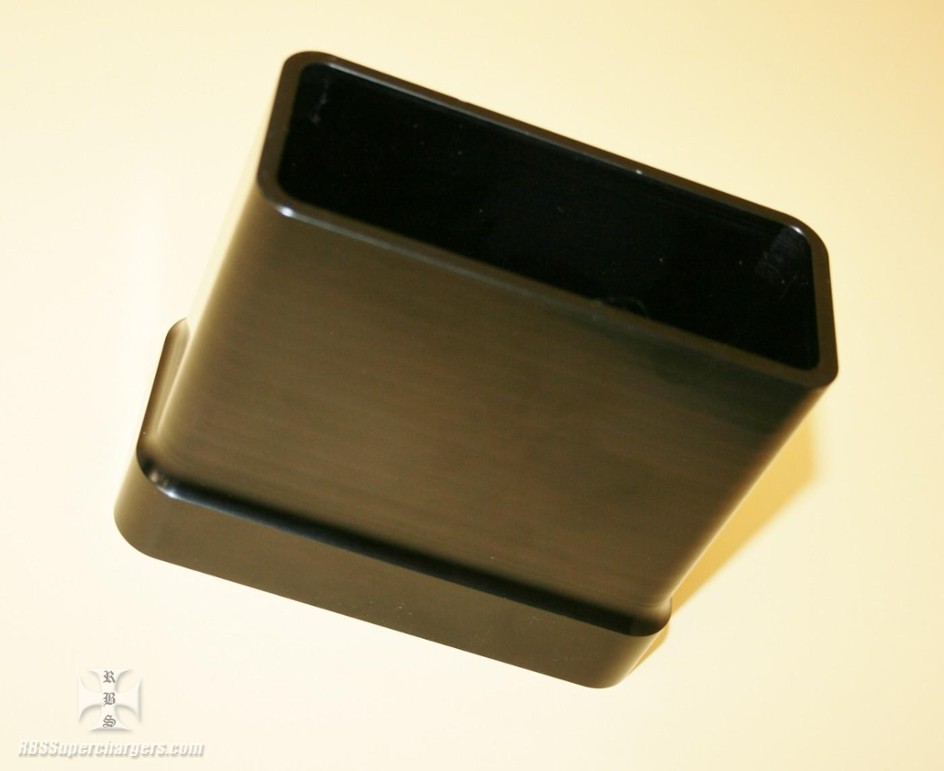

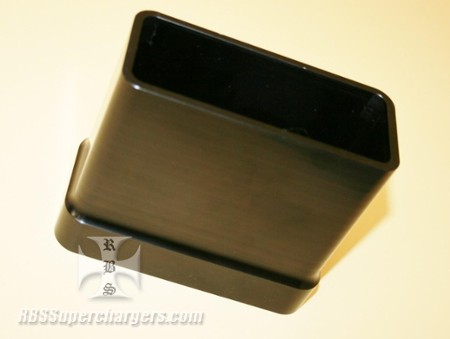

*** PLAIN ALUMINUM & BLACK ANODIZED IN STOCK SHIPS TODAY ***
For the racer that runs a PSI screw blower with a burst panel on the back of the blower this burst panel diverter chimney extension is purpose built so it will not blow the firewall out or blow the front end off the car when the burst panels let go.

Simple to mount onto the existing chimney the racer can drill and tap or drill thru and install nuts and bolts to mount.

Chimney extension measures 4.750" overall, from chimney diverter mating surface to top of chimney extension 4.00". Extension is 5.50" x 2.625" wide at the top of the chimney and weights one pound. Chimney is made from one solid piece of billet alum. to provide strength and to get the boost out into the atmosphere.
