Burst Panel Diverter Alum. Chimney Split

*** BLACK ANODIZED IN STOCK SHIPS TODAY ***

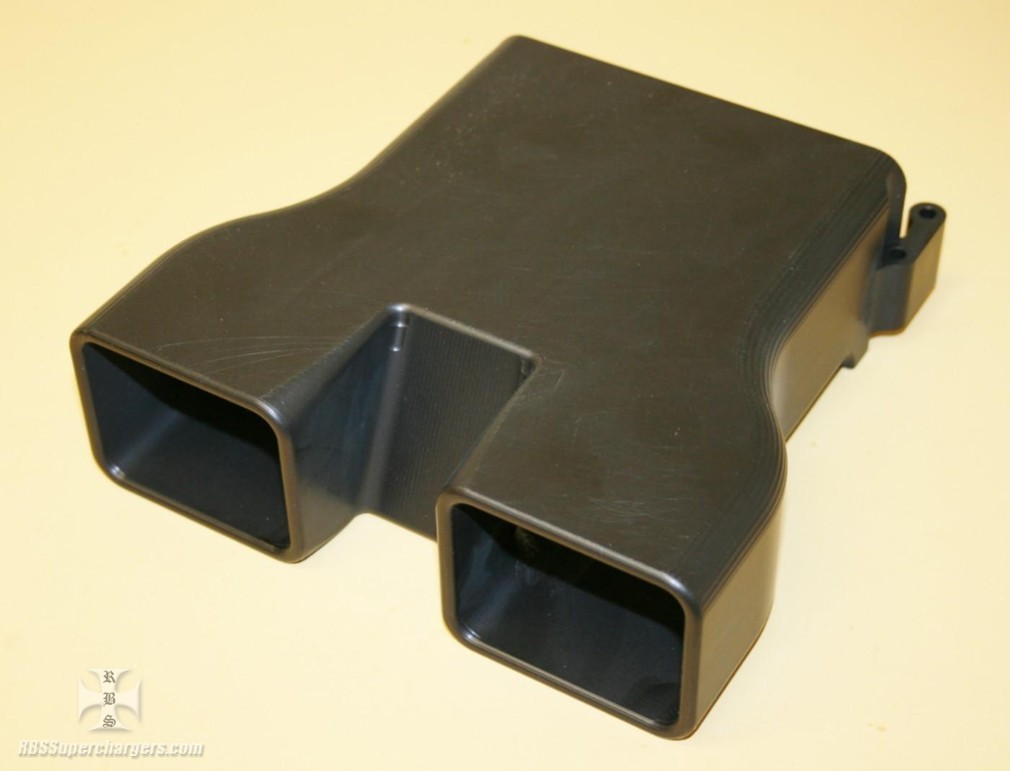

For the racer that runs a PSI screw blower with a burst panel on the back of the blower this burst panel diverter chimney is purpose built so it will not burn the rear blower restraint strap when the burst panels let go.

In the past there where chimneys but the rear strap on a 14.2 screw blower restraint would always get scorched. No longer friends this chimney has an 1.125" path right thru the center to lay the rear strap in and two 2.50" x 2.00" ports to let the BOOM!! escape into the atmosphere.

Simple to mount onto diverter with four 10/24" bolts which are included. Bolts may have to be trimmed if the stack of panel frames on the rear of the blower vary from what RBS has mocked up.

Chimney measures 7.00" from diverter mating surface to top of chimney, 7.50" x 2.50" wide at the top of the chimney and weights two pounds. Chimney is made from one solid piece of billet alum. and is CNC master piece.

** NO STUD KITS ARE AVAILABLE AT THIS TIME FOR THE CHIMNEY JUST 10/24" SOCKET HEAD BOLTS ** ONLY REAR INNER BURST PANEL FRAME IS USED WITH CHIMNEY, BURST PANEL MUST BE USED AS THE OUTER FRAME AND CHIMNEY ATTACHES TO PANEL DIVERTER **

Racer can choose from machined alum. or black anodized finish from drop down menu.
