Port Injection Nozzle Body Brass

Categories:
Fuel System
Lines & Kits
Nozzles
ENDERLE

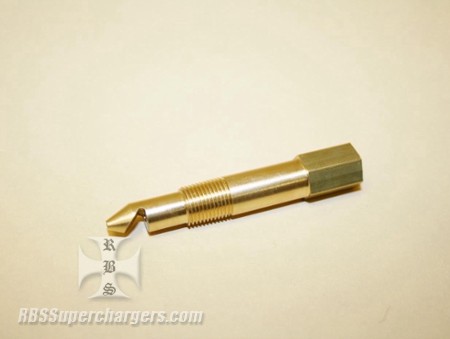

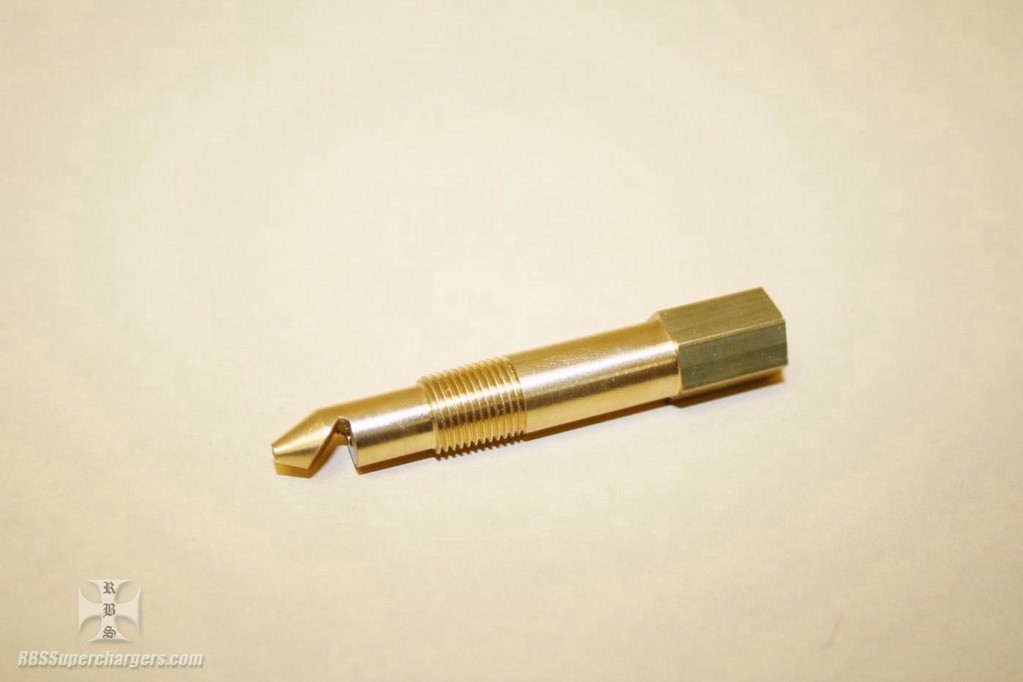

Port injection nozzle body brass. These can be ordered in extended, long, medium, short or tiny so specify length when ordering. The long and medium port body is pictured. Threads that screw into the manifold are 1/8" pipe. Nozzle bodies are sold each.

*** FIRST THREAD REFERS TO THE THREAD THAT GOES INTO THE PORT NOZZLE HOLE, CLOSEST TO THE NOZZLE TIP *** BOTH MEASURMENTS GIVEN ARE REFERENCING THE TIP END FIRST THREAD ***

#330-010D Extended port body measure 2.875" overall, from where the nozzle jet screws in to the first thread 1.875", from the tip to the first thread 1.00".

#330-010 Long port body measure 2.625" overall, from where the nozzle jet screws in to the first thread 1.875", from the tip to the first thread .750".

#330-012B Medium port body measures 1.90" overall, from where the nozzle jet screws in to the first thread 1.200", from the tip to the first thread .700".

#330-012 Short port body measures 2.00" overall, from where the nozzle jet screws in to the first thread 1.00", from the tip to the first thread 1.00".

#330-012C Small port body measures 1.750" overall, from where the nozzle jet screws in to the first thread 1.00", from the tip to the first thread .750".

#330-012A Tiny port body measures 1.50" overall, from where the nozzle jet screws in to the first thread 1.00", from the tip to the first thread .500".
