Burst Panel Diverter Alum. Chimney

*** PLAIN ALUMINUM & BLACK ANODIZED IN STOCK SHIPS TODAY ***

For the racer that runs a PSI screw blower with a burst panel on the back of the blower this burst panel diverter chimney is purpose built so it will not blow the firewall out or blow the front end off the car when the burst panels let go.

Simple to mount onto the diverter with four 10/24" bolts which are included. Bolts may have to be trimmed if the stack of panel frames on the rear of the blower vary from what RBS has mocked up.

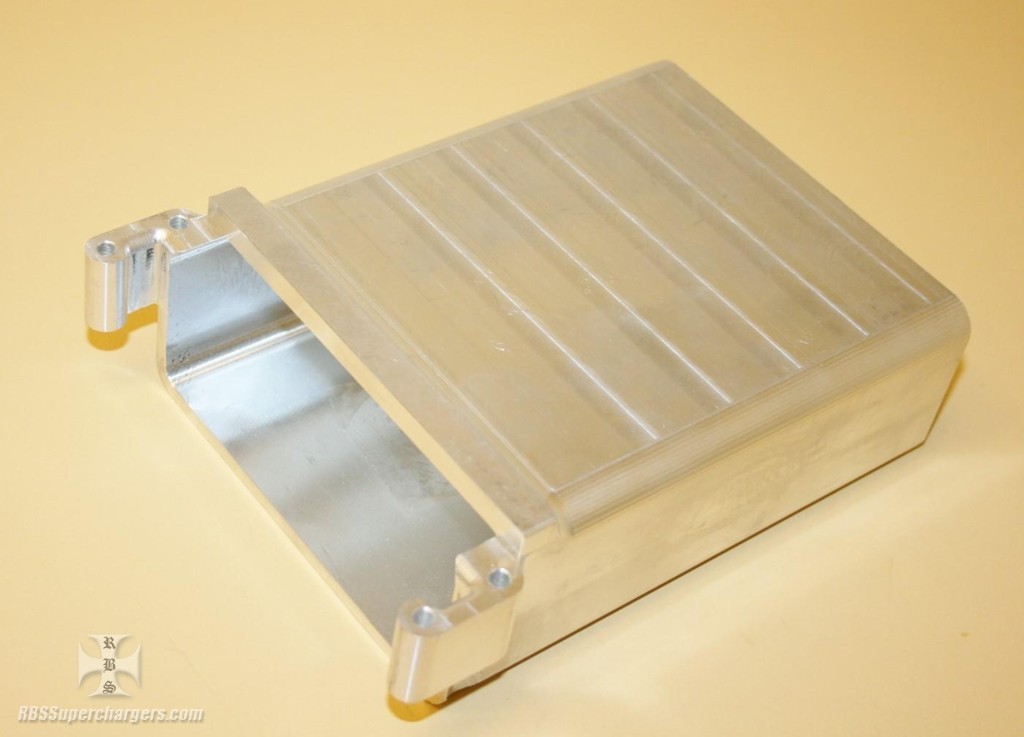

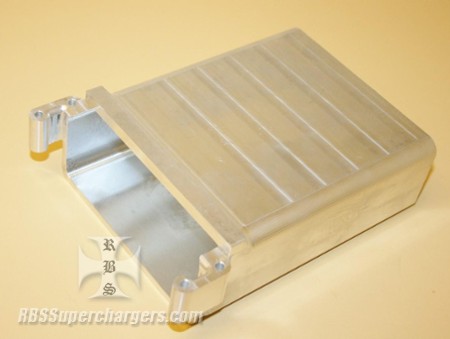

Chimney measures 7.00" from diverter mating surface to top of chimney, 5.50" x 2.50" wide at the top of the chimney and weights two pounds. Chimney is made from one solid piece of billet alum. and is a CNC master piece.

** NO STUD KITS ARE AVAILABLE AT THIS TIME FOR THE CHIMNEY JUST 10/24" SOCKET HEAD BOLTS **

ONLY #2000-0013B REAR INNER BURST PANEL FRAME IS USED WITH CHIMNEY, #2000-0003 BURST PANEL DIVERTER MUST BE USED AS THE OUTER FRAME AND CHIMNEY ATTACHES TO PANEL DIVERTER **

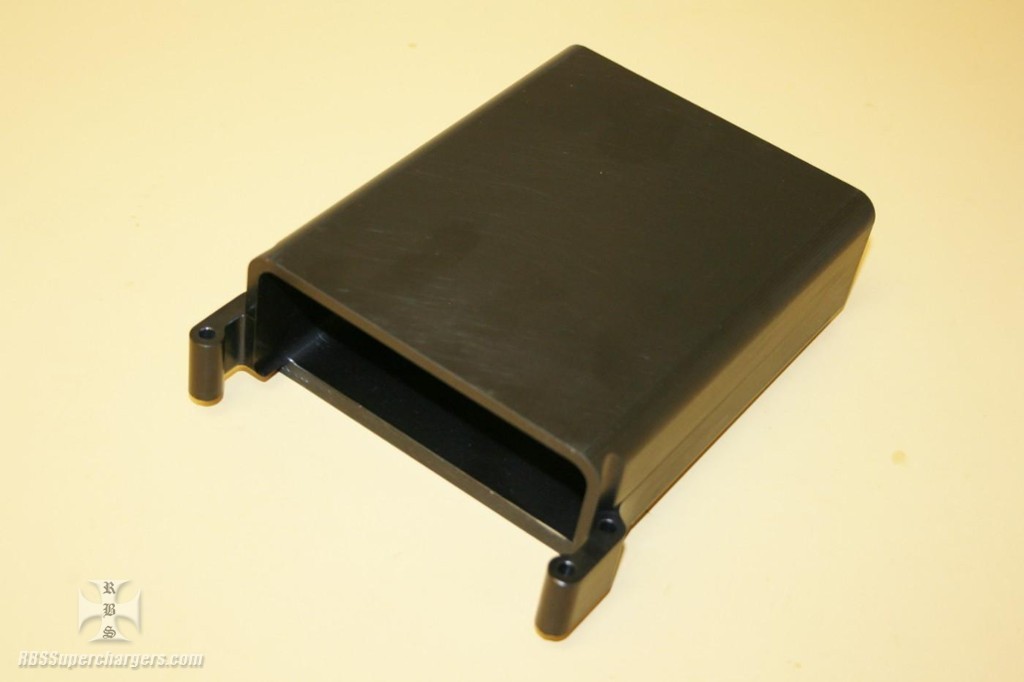

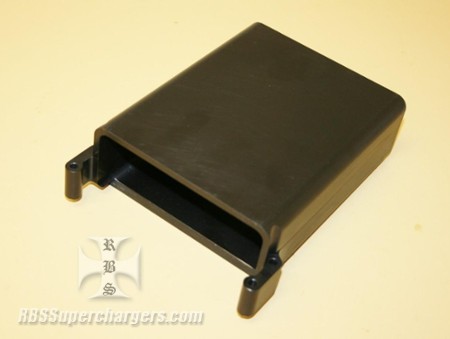

Racer can choose from machined alum. or black anodized finish from drop down menu.
