Y Dist. Eight Port & Down Nozzle Block

Categories:
Fuel System
AN Adapters
AN Reducers & Expanders
Distribution Blocks
Fuel Injection
ENDERLE

*** IN STOCK SHIPS TODAY *** RBS has found this fitting makes life easy for the nitro racer that wants to run one -12 line from the barrel valve and split to two -8's to run fuel to both cylinder heads to allow the use of down nozzles with the provision for eight port line nozzles.

Fitting is made from billet alum. and anodized for corrosion protection. The fitting also has a -6 and -3 provision for the racer to tie in a priming system or plumb in a fuel bleed off.

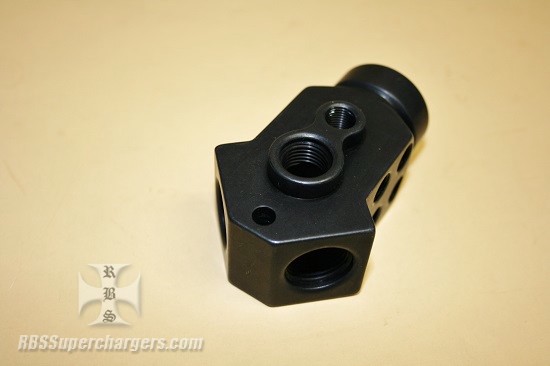

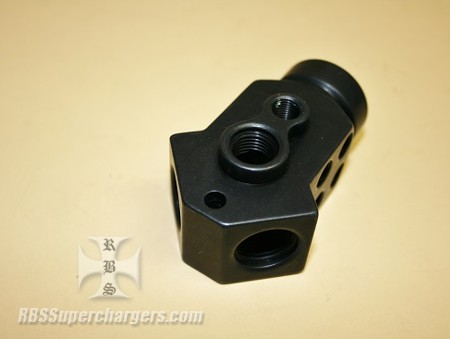

RBS can also supply many other fitting choices to make any combination that the racer may desire. Note the fitting in the picture is sold as the Y fitting only the other fittings are sold separately. The -12, -8, -6, and -3 are all AN threads and the eight ports are 1/8" pipe.
