-8 Hi Speed Or Port Check Valve

Categories:
Fuel System
Barrel Valve Componets
ENDERLE

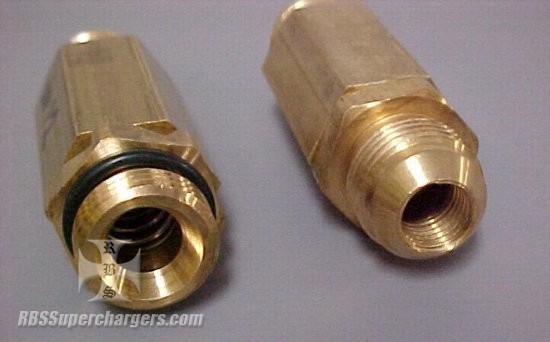

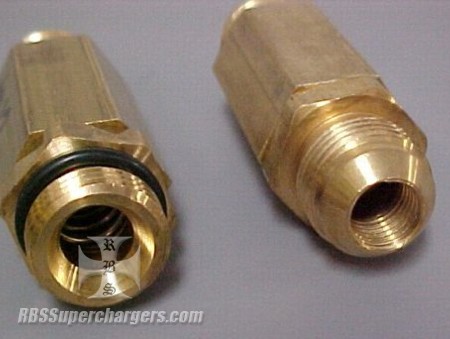

-8 high speed or port injection check valve. This valve allows you to return the excess fuel to your tank as the motor reaches max rpm and the butterflies slam shut after a pass with the option of having a jet to regulate fuel flow.

Also this check can be used as a port check valve which can be adjusted to a set pressure to regulate when the port nozzles come on.

The hi-speed check has both ends male 37 degree JIC as the port check is 37 degree JIC on one end and -8 ORB on the other end with a reverse flare.

Please specify port or hi speed check and spring pressure when ordering and if your not sure let RBS help you.

Hi-speed version uses 7/16-20 thread in Enderle or Crawford jets.

Racer can choose check valve type from drop down menu.
