Olson Billet Rail BBC Dry Sump Oil Pan

RBS has found this to be one of the nicest billet rail BBC oil pans on the market for your racing needs. Olson pans have been setting records for years and providing people with top quality pans that don't leak.

The main rail is .300" thick, billet end seal pieces so it does not bend and the entire pan is tig welded .090" alum. to provide superior strength. This pan is available for multi-stage dry sumps and there are many available options. All pans have an ORB drain plug making getting the old oil out a snap.

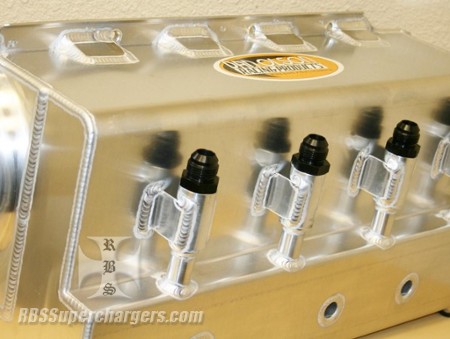

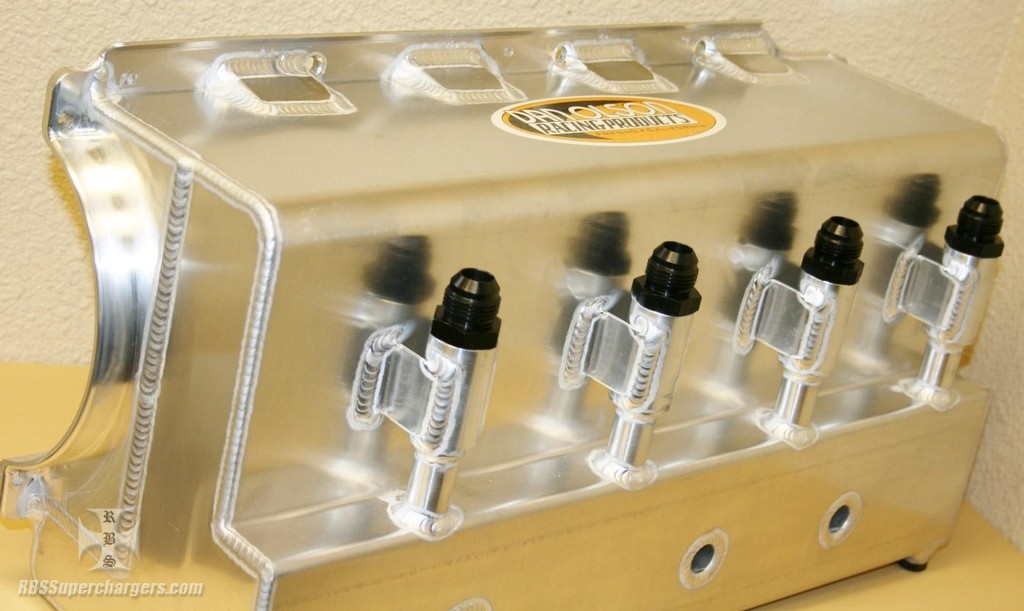

Pans can be had for all standard BBC's as well as Gen 5 and 6 engine blocks. Included is a dzus windage tray to help keep oil off the spinning crankshaft. Pick-ups are -12 ORB and include a AN fitting for each stage. Pan shown in the pictures measures 7.750" from block surface to bottom of oil pan, 11.00" wide at the bottom of the oil pan and on the pick-up side 6.50" from the pan rail surface to the pick-up surface. Pan weights eleven and half pounds as shown in the pictures.

When ordering please specify crank stroke, block starter provision, if dry sump how many scavenge returns and on what side of the oil pan and if in a V-drive boat is prop shaft clearance needed.

Please specify the above when ordering. Pans start at $700.00 and depending on options and pick-ups the price can vary.
