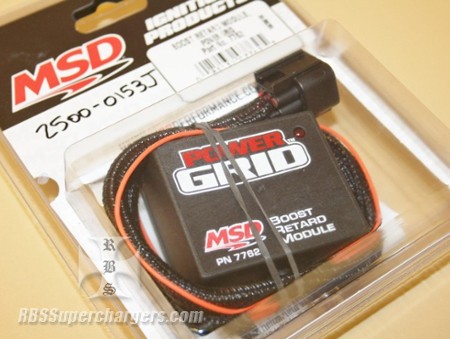

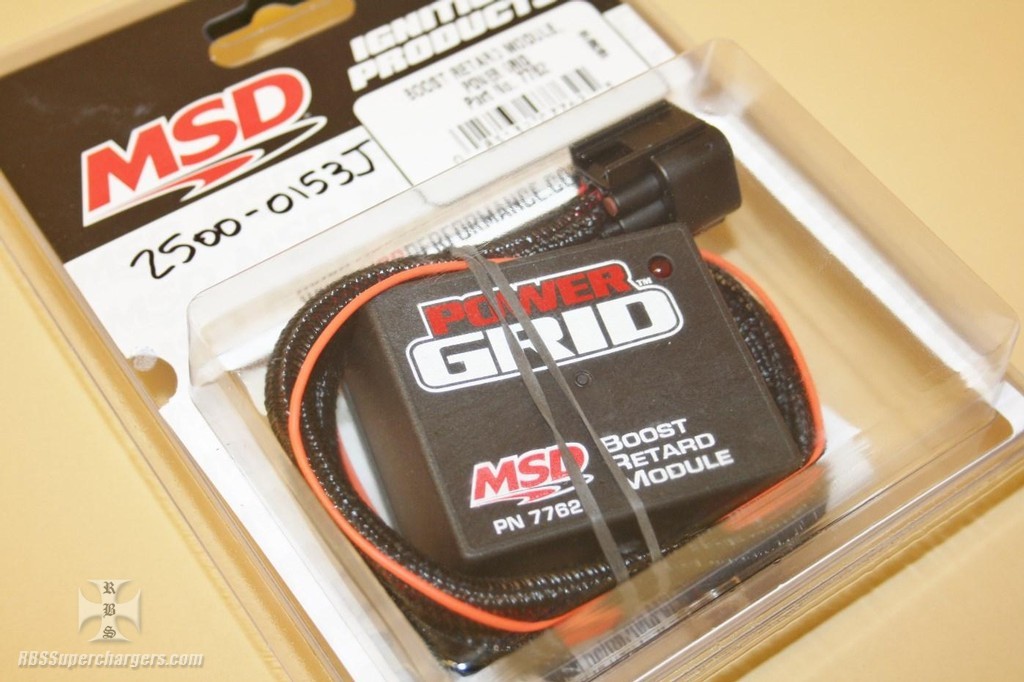

MSD Power Grid Boost Retard Module #7762

Over-Boost: Allows the user to set an over-boost limit that will disable the ignition if that limit is exceeded.

Boost Pressure Switch: There is an Orange output wire that switches to ground when the desired boost pressure is reached. The Orange wire can sync 2 amps of current (continuous) to ground. When higher current is required, use of a relay with the Orange wire is needed.

Data Acquisition: The Module provides data recording of the manifold pressure for boost or vacuum.
All Power Grid Modules work through MSD’s CAN-Bus system.

The Power Grid Modules are plug and play installations but may require extension harnesses for remote wiring. NOTE: Do NOT cut the wires to the CAN-Bus Harness. In the event an extension harness is needed to mount the unit in the desired location MSD offers the following extension harnesses-
• 2’ CAN-Bus extension PN 7782
• 4’ CAN-Bus extension PN 7784
• 6’ CAN-Bus extension PN 7786

The Boost Retard Module utilizes a ¼” Camozzi (push lock) pneumatic fitting. The fitting is not interchangeable. Attempting to change the fitting will damage the circuit board and is not recommended by MSD. Boost pressure is 45 pounds max for this retard module.

Includes detailed installation instructions.
