FIE Fuel Control Manifold W/Valves/Controller

Price:

Part No.:

MPN: FUELM-2C

395-0063    2 Valve/W Controller   ($1,167.95)
395-0063A    3 Valve/W Controller   ($1,269.75)
395-0063B    4 Valve/W Controller   ($1,364.95)

Categories:
Fuel System
Management
FIE

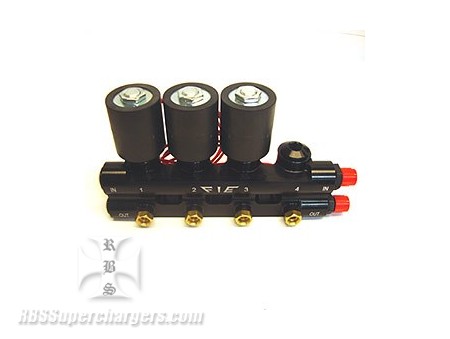

*** IN STOCK SHIPS TODAY *** The FIE fuel control manifold can accept up to four valves (lean out, enrichment or a mix), each station with its own bypass pill. Just like FIE's popular single valve, it features an "IN" and "OUT" in each end for ease of plumbing. Any stations without a valve are shipped with a plug and a blank pill to disable it. FIE's 12VDC valves boast 3500 PSI operating pressure, 11 GPM flow (@50 PSI pressure drop), -8 female ports and draw less than 1.7A. It is simply the BEST we've ever seen for this kind of duty. See our bundled/discounted package of this hardware coupled with our time controller!

An example setup: Station 1. (NC valve) "Stage Valve" lean-out to control engine temp while staged, ~700 degrees EGT desired. Connected to trans-brake or clutch switch.

Station 2. (NC valve) "Low speed" lean-out. Allows richer mixture (smaller main pill) off the line for best torque. Once the car gets moving (1.8 - 2.3 sec. out), opens and leans system for best middle track performance.

Station 3. (NO valve) Slight enrichment for best torque when shifting to high gear.

Station 4. (NC valve) "High-speed" lean out for best top end horsepower and MPH. The remaining 4th channel of the timer could be used to shift by time (twice if desired), activate a shift-light, activate ignition timing changes, etc.

FIE partnered up with Leash Electronics for this terrific, compact timer controller. Leash has been building race car electronics and nitrous controllers for years. Built to our specs, this control unit allows the user to specify two separate ON and OFF events per pass for any or all of 4 separate channels as desired. This is a perfect controller for multi-stage fuel systems utilizing electronic valves to lean or enrich fuel delivery according to a timed schedule of events. The FIE electronic lean-out or enrichment valves are ideal for this controller!

Could also be used to control ignition timing events, activate a shift-light, shift the car by time, etc. This rugged little unit is housed in a billet aluminum enclosure and can switch up to 5 amps of continuous current per channel. Easy to connect and simple to program.
