Distribution Block Seventeen Port Carbon Hat Bohr

Price:

Part No.:

300-101B 17 Port Block ($187.00)
300-101C Hat Mount ($40.95)

Categories:
Fuel System
Distribution Blocks
BOHR

*** IN STOCK SHIPS TODAY *** MOUNTING PAD SOLD SEPERATE ON DROP DOWN MENU*** WE HAVE SOME RACERS THAT PREFER NOT TO MOUNT THE DISTRIBUTION BLOCK TO THE INJECTOR HAT AND LET THE HOSES HOLD IT IN PLACE *** Many times in the racing industry the racer needs some flexibility on how they want to plumb their fuel system and for many years the racer had little choices. Well friends RBS has found this Bohr distribution block to offer the most options in one small lightweight compact package.

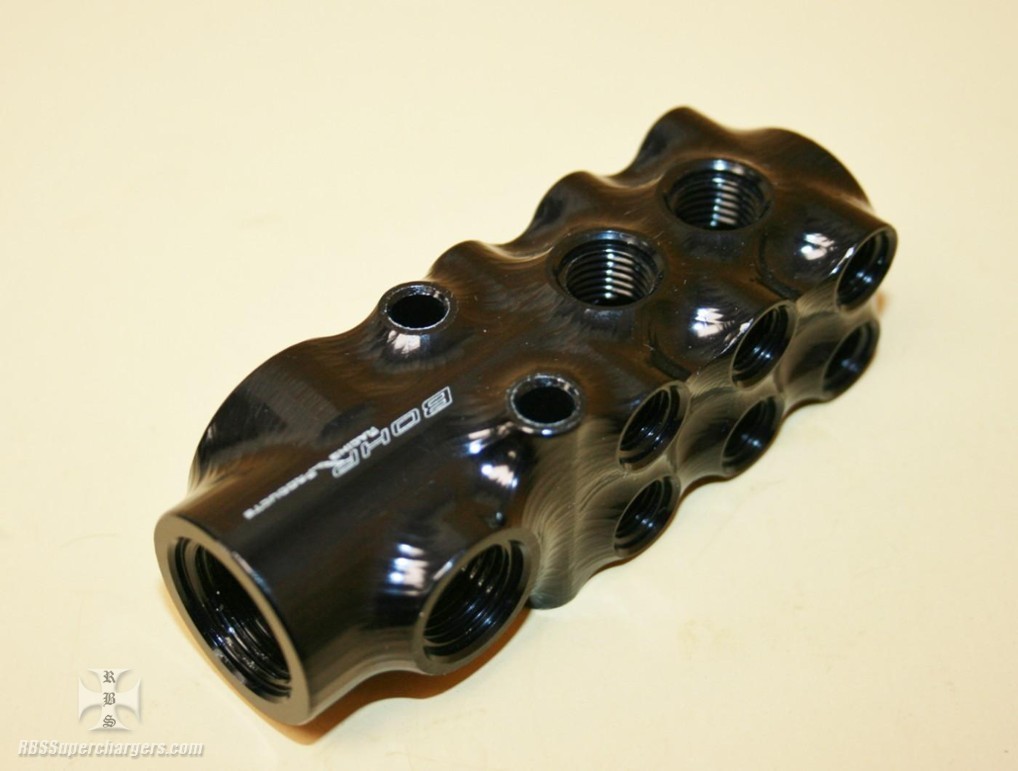

Distribution block is machined with one -10 ORB port on the side, one -8 ORB port on the front, one -6 ORB port on the other side and twelve -3 ORB ports on the side to plumb fuel lines into with two -4 ORB ports on the top side. Machined from billet aluminum to keep it lightweight and anodized for corrosion protection. Distribution block dimensions are 3.800" x 1.325" x 1.210" and weights 135 grams without the hat mount, hat mount weights 70 grams with bolts.

Mounting pad is set up with two 3/8" bolt holes on a 4.430" spread which is common on most all carbon fiber hats in the racing industry.
