Belt Driven Fuel Pump Drive Assm.

Price:

Part No.:

MPN: 5014A PUMP

380-0001    Blower motor   ($400.50)
380-0002    BBC Damp   ($392.50)
380-0003    BBC Mandrel   ($400.95)
380-0003A    BBC Low Mnt.   ($402.95)
380-0004    SBC Damp   ($418.95)
380-0005    SBC Mandrel   ($404.95)
380-0005A    LS Mandrel   ($375.95)
380-0005B    SBC Low Mnt.   ($404.95)
380-0006    SBF Damp   ($416.75)
380-0007    BBF Damp   ($418.50)
380-0008    426-440 Chrysler   ($426.50)

Categories:
Fuel System
Belt Drives
ENDERLE

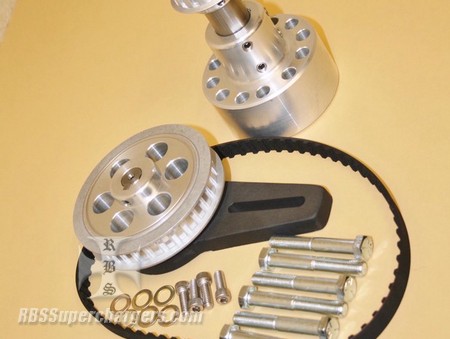

This belt drive set up allows you to run a fuel pump off your crankshaft of an injected or blown and injected motor at cam speed. It includes a mandrel to mount the drive pulley, mounting hardware, drive belt and a pump mounting bracket with a driven pulley mounted on a heat treated steel shaft riding in a sealed ball bearing.

Blower motor mandrel is adjustable for the depth that it sticks out of the blower pulley as it has a billet steel shaft that slides into the billet alum. mandrel base and is locked down with four set screws.

BBC/SBC fuel pump drives mount the fuel pump off the water pump holes on the 1, 3, 5, 7, side of the engine.

RBS now has the low mount BBC or SBC fuel pump drive that allows the racer to mount the fuel pump bracket off the 7/16" or 3/8" bolt holes that are on the front of most all BBC/SBC engine blocks. Makes mounting the pump lower for better fuel pick up and offer a more compact and tidy fuel pump installation.

Racer can choose motor type from drop down menu.

NOTES ON PICTURES: Picture one is blower motor drive, picture two is a mandrel drive, picture three is a dampner drive, picture four, five, six are blower motor fuel pump drive, seven dampner mount, eight, nine, ten and eleven are of the new low mount BBC kit.

Picture twelve thru twenty two are small block Ford dampner fuel pump drive.
