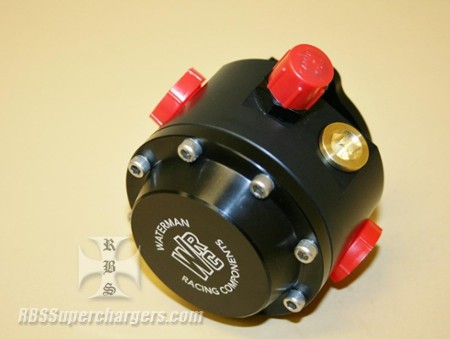

Waterman Sprint Fuel Pump Alch./Gas

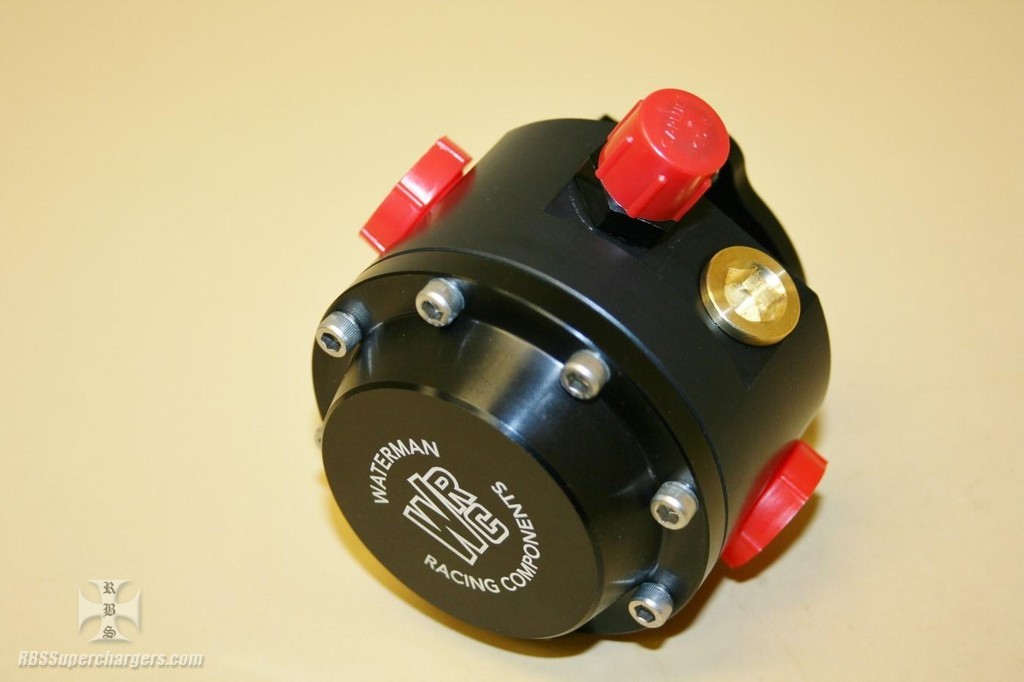

RBS is proud to supply racers with the Waterman Sprint fuel pump. Racer can double click the second picture to blow it up and pick the gearset to match the gallonage that is needed for the application.

It is made from billet alum. and anodized black to give it a distinctive look while providing racers with the leading edge for performance. It can be ordered in several different gallonages from 3 up to 7 so the racer must specify when ordering and if not knowing RBS will be happy to help you pick a pump that will fit your application.

This pump uses the swivel three bolt mounting flange that the racer can mount a quick release marmon flange that requires the use of an over center band clamp which makes for quick removal of the pump to swap motors or change the blower belt. Fuel pump uses the industry standard .375" hex drive shaft which is made from heat treated steel.

The pump uses a -8 ORB female thread on the inlet and outlet which allows the racer to install a AN fitting of the racers choice to determine there inlet/outlet sizes.

Pumps typically start at $630.00 and final costs depends on the options the customer orders.

RBS will need to know the following when ordering a fuel pump: 1. Gallonage 2. Swivel clamp 3. Inlet size -12, -16, 1.250" or 1.50" 4. Outlet size -8 or -10.
