Belt/Cable Driven Fuel Pump Driveshaft

Categories:
Engine
Belt Drives
Fuel Pump
WATERMAN

From time to time a racers fuel pump application changes and the need for a shorter or longer fuel pump driveshaft may come about. When the racer uses a bolt on type fuel pump and switches to a quick clamp or vice versa RBS carries a full supply of driveshafts to make the fuel pump swap a simple change.

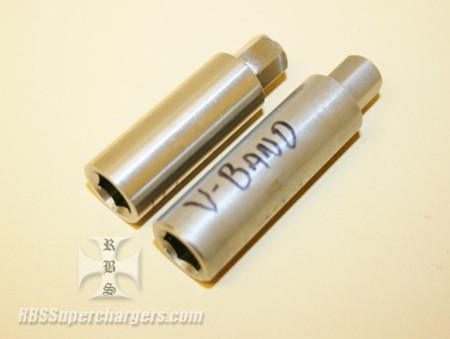

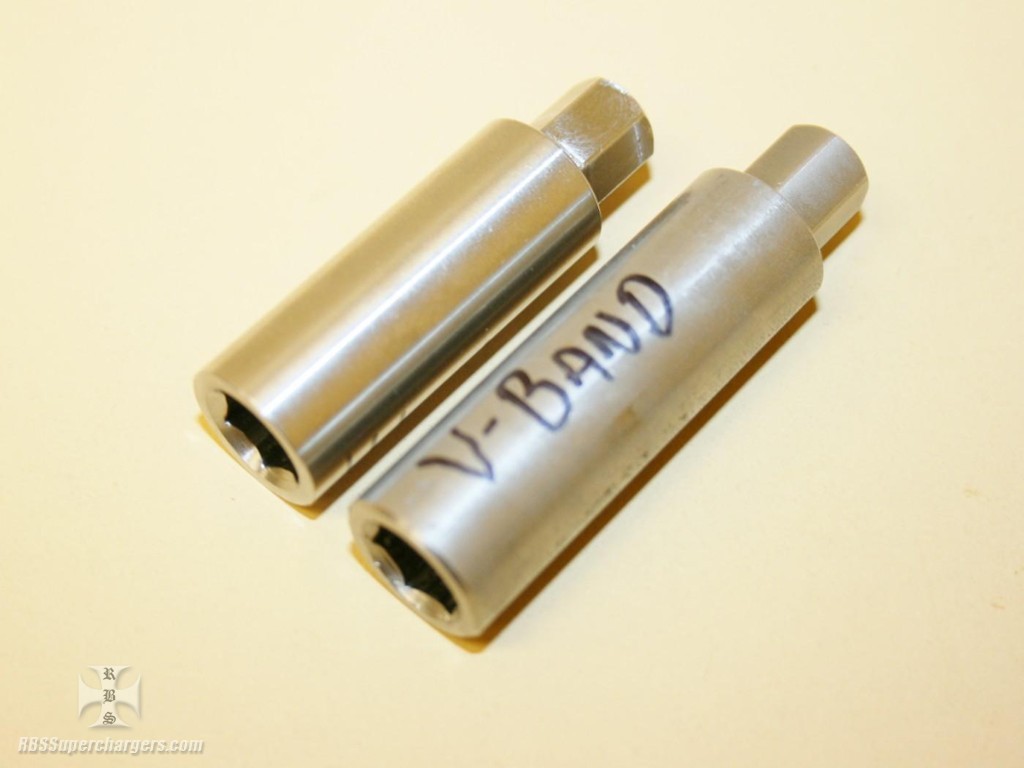

Fuel pump adapter includes a heat treated steel driveshaft that couples the fuel pump to the fuel pump drive mount. Driveshaft is .375" male hex on one end and .375" female hex on the other end. Shaft measures 2.00" end to end for bolt on applications, 2.375" end to end for quick clamp applications, male hex is .450" long, female hex is .550" deep and shaft diameter is .625".
