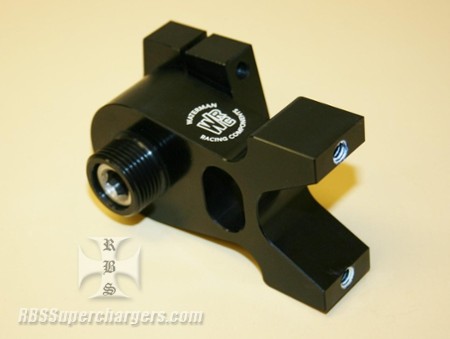

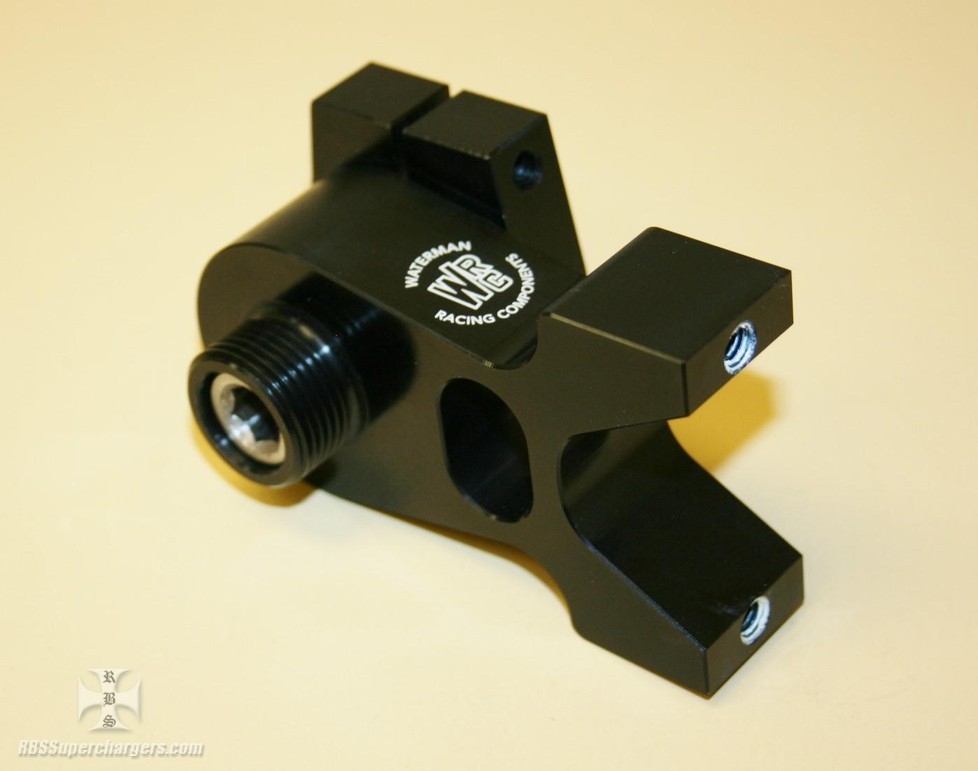

*** IN STOCK SHIPS TODAY *** RBS carries a full line of Waterman cable driven fuel pump drive components. This fuel pump chassis mount allows the racer to flat panel mount or use a bar clamp to mount a Waterman fuel pump using a 1/4" socket head pinch bolt.

Waterman fuel pump simply slides into the 1.450" bore, .375" fuel pump hex engages into the female hex shaft that rides in a hi-speed sealed ball bearing and the racer hooks the .375" hex drive cable to the other side and let the fun begin.

Fuel pump mount is made from billet alum. has two 1/4"-20 mounting bolt holes on a 1.950" bolt spread. Register that slides in the Waterman bracket is 1.450" diameter x .700" deep. Fuel pump mounts 2.750" from flat panel mount to center of fuel pump driveshaft, 1.800" from inside of bar mount to center of fuel pump driveshaft.

Fuel pump mount is anodized for corrosion protection and wear resistance. If running a Enderle, Hilborn or Aeromotive three or four bolt fuel pump be sure to check out part number #380-0035. If needing a bar clamp check out part number #380-0037.

*** PICTURE EIGHT SHOWS A BAR CLAMP MOUNT WITH CHASSIS MOUNT BRACKET. BAR CLAMP MOUNT IS PURCHASED SEPERATE UNDER PART NUMBER #380-0037. ***
