BBC BDS Competition Std. Deck Blower Manifold Satin

Price:

Part No.:

MPN: BM-3027S

1100-0016    BBC 9.80   ($965.00)
2000-0008    Back Fire Valve   ($99.50)
2000-0002A    Brst Pnl Blck Off   ($26.75)
2000-0014    Burst Panel Kit   ($55.00)

Categories:
Superchargers
Manifolds
BDS

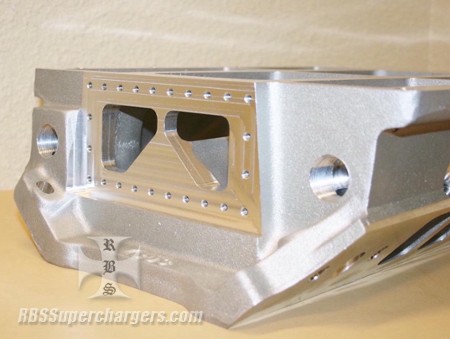

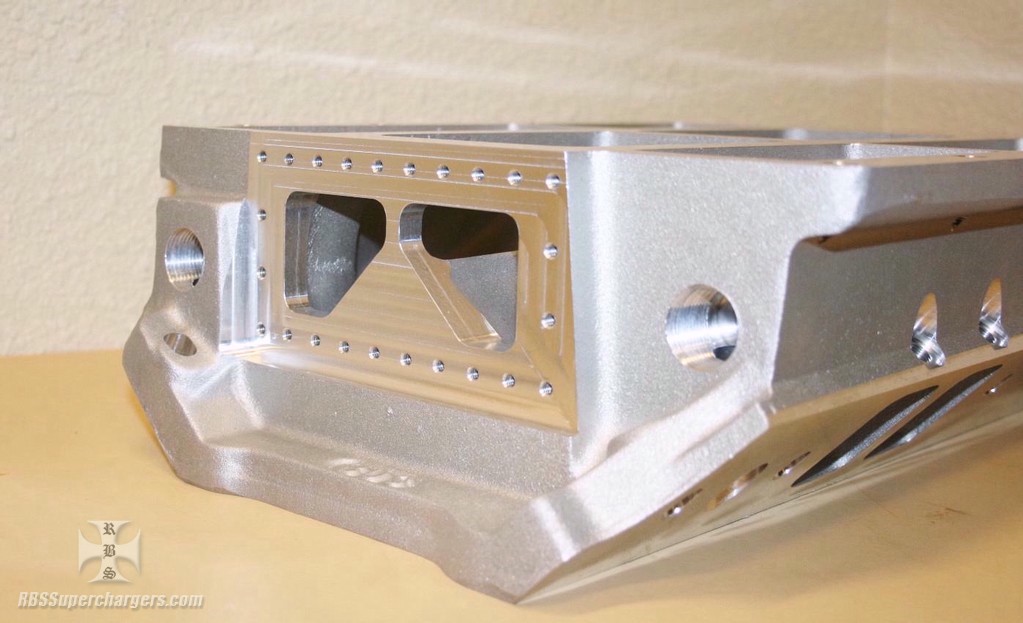

*** IN STOCK SHIPS TODAY *** BBC 9.80" standard deck competition blower manifold satin finish. This manifold is set up to run water thru it using 3/4" NPT threads, has port nozzle provisions already drilled and tapped and has a tented floor for better fuel distribution.

Manifold will fit a 6-71 thru 18-71 roots supercharger. Manifold now comes machined for a burst panel at no additional charge. Manifold is 4.90" from deck surface to blower mounting surface. Manifold has been drilled and tapped 1/8" pipe in the rear of the manifold plenum for a boost gauge. Ports measure 2.375" x 1.625".

If customer chooses not to run a burst panel RBS offers wither a burst panel block off plate #2000-0002A or burst panel block off plate with a spring loaded backfire valve #2000-0008.

Intake to cylinder head gaskets are included and measure .060" thick, ports on gaskets measure 2.600" x 1.825".
