Fuel Pump Drive/Mount Assm. Jesel

Price:

Part No.:

370-0090    Sbc   ($199.95)
370-0091    Sbc .391"   ($201.95)
370-0092A    Bbc 7.00"   ($199.95)
370-0092B    Bbc 8.00"   ($201.95)
370-0093    Bbc .400"   ($201.95)
370-0093C    Bbc .600"   ($203.95)
370-0093A    Bbc 1.00"   ($205.95)
370-0093B    KB Olds"   ($205.95)

Categories:
Fuel System
Fuel Injection
Belt Drives
R&R MACHINE

*** IN STOCK SHIPS TODAY *** BUYER MUST HAVE ABILITY TO DRILL AND TAP HOLES TO MOUNT FUEL PUMP, DUE TO DIFFERENT APPLICATIONS HOLES ARE LEFT OUT SO BUYER CAN CLOCK FUEL PUMP TO WHERE IT FITS THEIR APPLICATION BEST ***

Jesel fuel pump drive/mount assm. This set up allows you to mount and run a mechanical fuel pump or a offset mag drive off the front of your engine when you are using a Jesel belt drive.

This assm. includes the special left hand thread drive spud to go in the center of the cam that is made from heat treated steel and rotary broached for a concentric fit to the fuel pump shaft. The mounting bracket and spacers are made from billet aluminum and black anodized. Included are bolts and washers to mount the bracket to the engine. Holes must be drilled buy the customer to mount the fuel pump, fuel pump extension or offset mag drive depending on which extension or offset mag drive you choose.

The standard cam BBC has an option for a 7" or 8" damper. The picture with the plate that is not relieved all the way thru the fuel pump register is the 8" damper version. Material is left in the bore to gain strength as the fuel pump bridge has been machined out a lot to clear the damper.

The standard SBC and raised cam brackets are designed for 6.375" dampners. If running a 7.00" dampner buyer will have to clearance bracket.

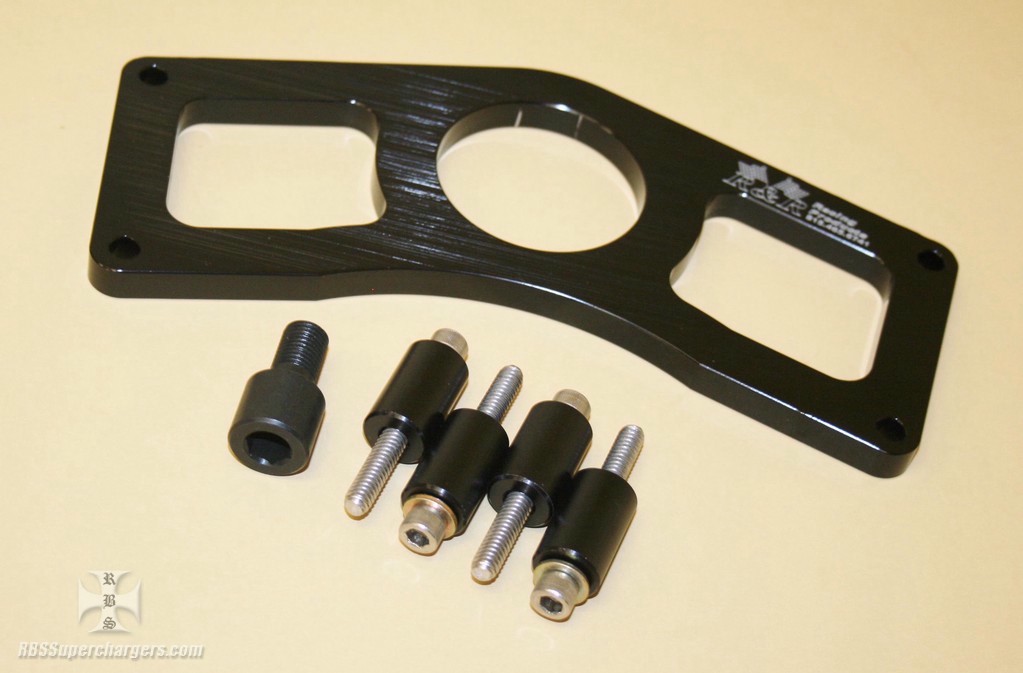

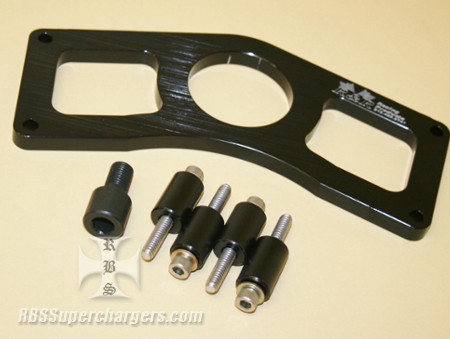

Picture one is BBC 7.00", picture two is BBC 8.00" and picture six thru eight is of the KB Olds bracket assm.

Racer can choose from drop down menu engine type and cam height for their application.
