Transmission Pressure Diversion Valve

Price:

$93.50

Part No.: 2200-0043

MPN: 1150

Categories:
Engine
Carb Adapters & Linkages
BDS

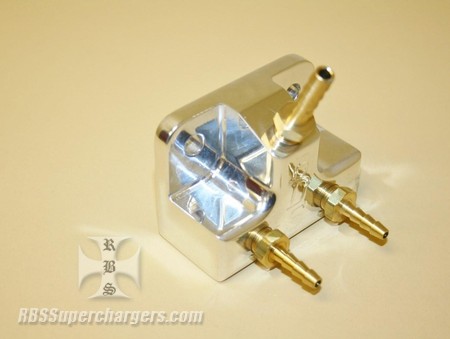

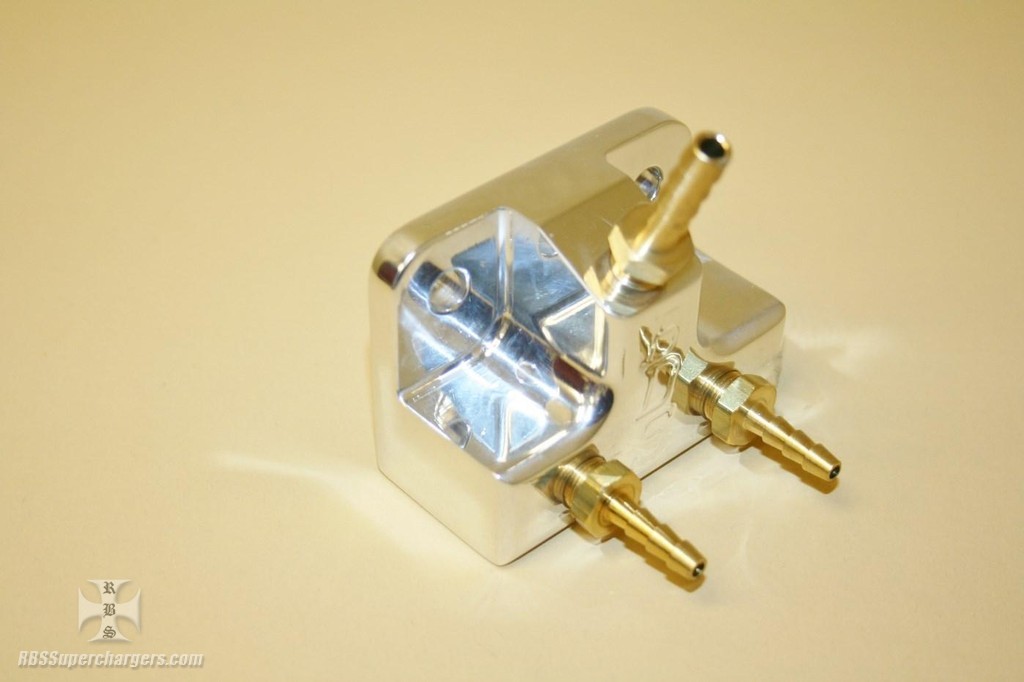

*** IN STOCK SHIPS TODAY *** BDS transmission pressure diversion valve assm. This valve is a must if you are going to use an automatic transmission with a blown motor.

It will give the vacuum modulator on the transmission the correct vacuum signal until the motor begins to build boost. This will allow the tranny to do proper shifting and if not used it can burn up a tranny fairly quickly.

The top line goes up to the base of the carb and the .125" NPT goes to tranny modulator and the .187" line hooks to the blower manifold. The PDV valve is made from billet alum. then polished and includes mounting hardware as well as hose barbs.
