TDC & Cam Timing Fixture Fuel Hemi Gen 2 426

Categories:
Engine
Tools
Tools
WESCO

*** IN STOCK SHIPS TODAY *** For the racer or professional engine builder here is a tool that is vital to help with the set up of the camshaft and gear drive on your fuel Gen 2 426 Hemi race engine. Tool drops down over four head studs, install your dial indicator on the intake or exhaust side of the cam shaft and let the experience begin.

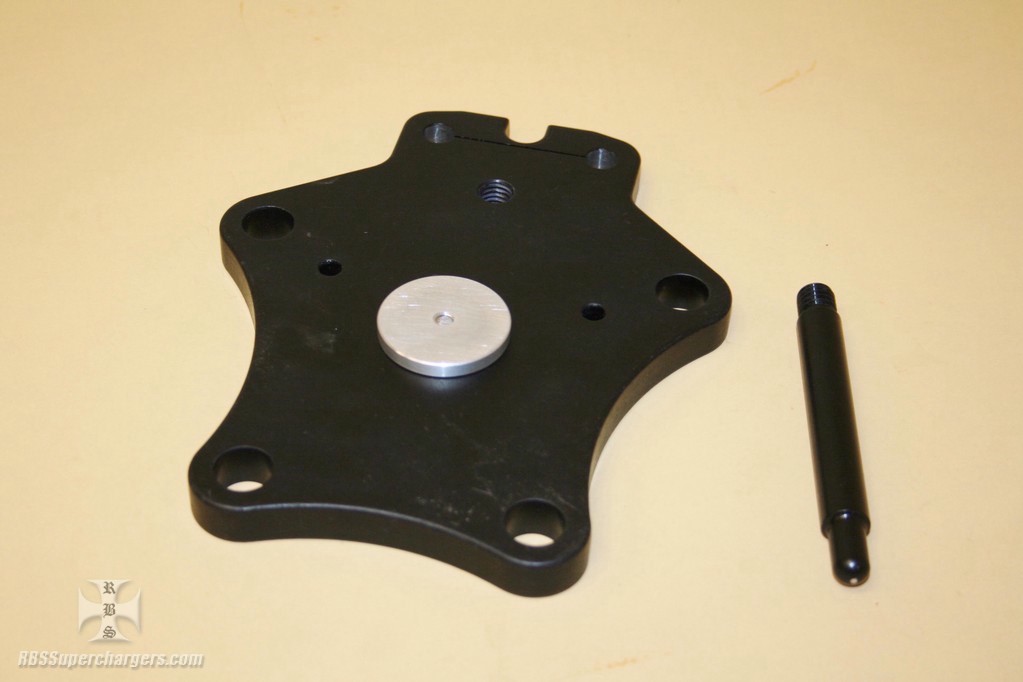

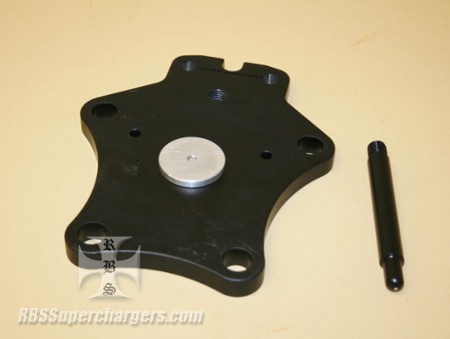

Plate is made from .500" billet alum. and is anodized for corrosion protection and easy clean up. Plate has a TDC piston stop, mock push rod and included is a precision .001" graduation dial indicator with 1.00" travel.

Cool feature of the tool is that the mock push rod screws into the base when not in use to protect the dial indicator from being beat up, a kickstand so to speak. Tool will fit KB, TFX and BAE engine blocks.

Racer will need to make some tube sleeves to slide over the studs to tighten the nuts down against to use the tool.

Tool is designed for a flat top fuel piston and not designed to be used with a dome alcohol piston.
