Rotors are billet alum. sixty degree for the greatest strength and hard anodized for a long lasting durable supercharger with a tighter inside tolerance creating a more efficient supercharger.
The blower uses double lipped Teflon seals to provide a superior seal on the rotor shafts with hi-speed precision double row ball bearings and new helical steel gears to insure accurate blower rotor timing.

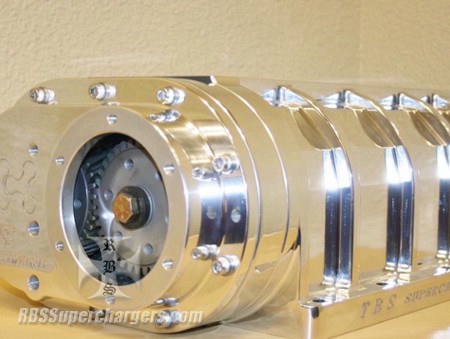

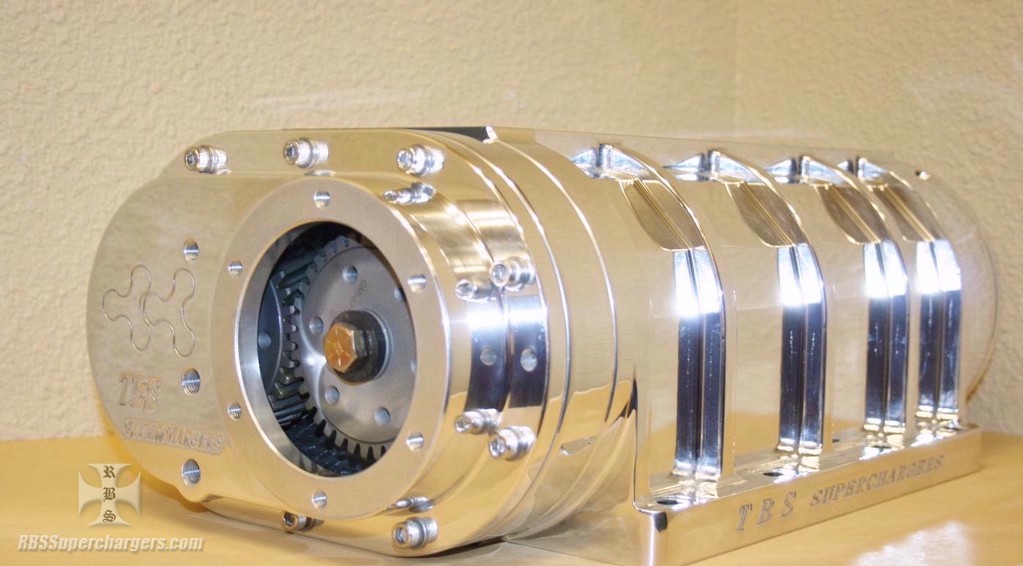

Supercharger uses billet alum. rear bearing plate, front bearing plate, and billet front gear cover for maximum strength and gives a superior polish. Any injector can bolt to the top of the blower that uses the 13.250" on center bolt pattern such as a Bug, Bird, Big Ugly or most any carbon fiber injectors.
Blower case is made from forged alum. to give maximum case strength and the best polish job on the market. Blower includes pressure relief valve, oil sight glass and oil drain plug as well as a adjustable inlet shoe so the racer can close off or open up the inlet for there overdrive application. Blower includes one shoe and inlet shoes range from 7.00" to 11.00" on top openings. Additional blower shoes can be purchased separately.
Blower case has 1/8" pipe nozzle provisions in the rear to help seal the blower and keep the rear bearing plate cool.
Blower can be ordered black anodized for an additional $350.00.
