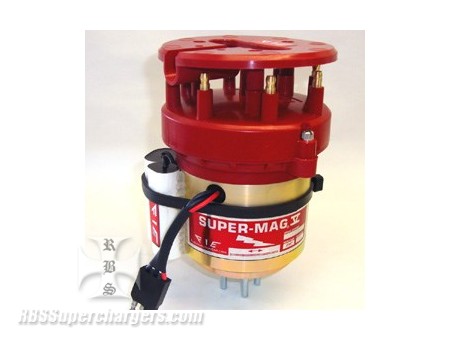

Super Mag V Eight Cylinder Large Cap

Price:

Part No.:

MPN: FIE-NFC8

2500-0069L    Cw Rotation   ($1,705.00)
2500-0069M    Ccw Rotation   ($1,705.00)
Option Cap    Fie Pro Cap/Hi Temp Rtr   ($1.00)
Option Cap    MSD Cap/Hi Temp Rtr   ($71.10)
Option Driver    Four pin   ($1.00)
Option Driver    Dunn Cross   ($1.00)
Option Driver    RCD Three Jaw   ($1.00)
Option Driver    RCD Four Jaw   ($1.00)

Categories:
Mag Drives
Mags & Coils
FIE

This is the most reliable Super-Mag V generator on the planet! Proven to exceed expectations lighting gallons of nitromethane in blown nostalgia funny cars.

FIE starts with an FIE Neodymium Magnet/Poleshoe/Shaft assembly built in-house. A brand new Super-V winding is added to a gold iridite finished aluminum housing. FIE added an extra grommet hole for the capacitor pass-thru to prevent any primary short circuits in the event of tire-shake.

FIE then puts in our own stainless steel breaker cam (extra dwell time built in!) and special point plate that allows the use of some extreme "severe-duty" contact points. These points can literally last years! These are not beefed up Mallory-style points - they are completely different and require the use of a taller rotor/cap assembly.

This mag now comes with the option to use a Mallory Pro cap or the MSD cap. FIE adds there own adapter ring and steel fabricated rotor driver that moves everything up. We add a huge rotor tang and heat sink to the rotor to prevent melted plastic.

A three-wire harness and just the right amount of capacitance on the outside make things really sing. We add the driver of your choice to the bottom and test it through 10,000 engine RPM. Complete with output test report.

The perfect match for this mag to make the most possible output is the #2500-0148 big red transformer built for the Super-Mag V and Super-Mag+. We also have mount for them under #2500-0147.

Your crusty old Super-Mag II, III or IV is accepted as a core with $200 credit applied toward your purchase. Any old Super-mag V is worth $350 as a core (must have a V winding inside).
