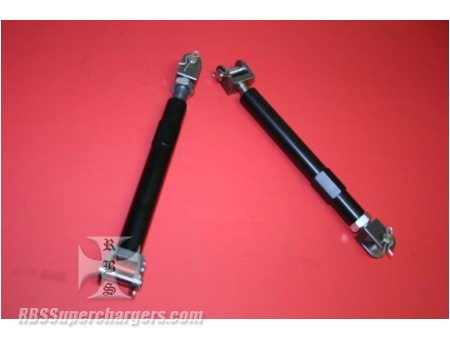

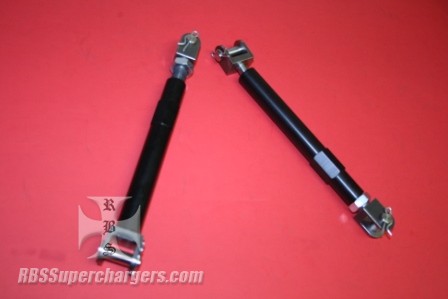

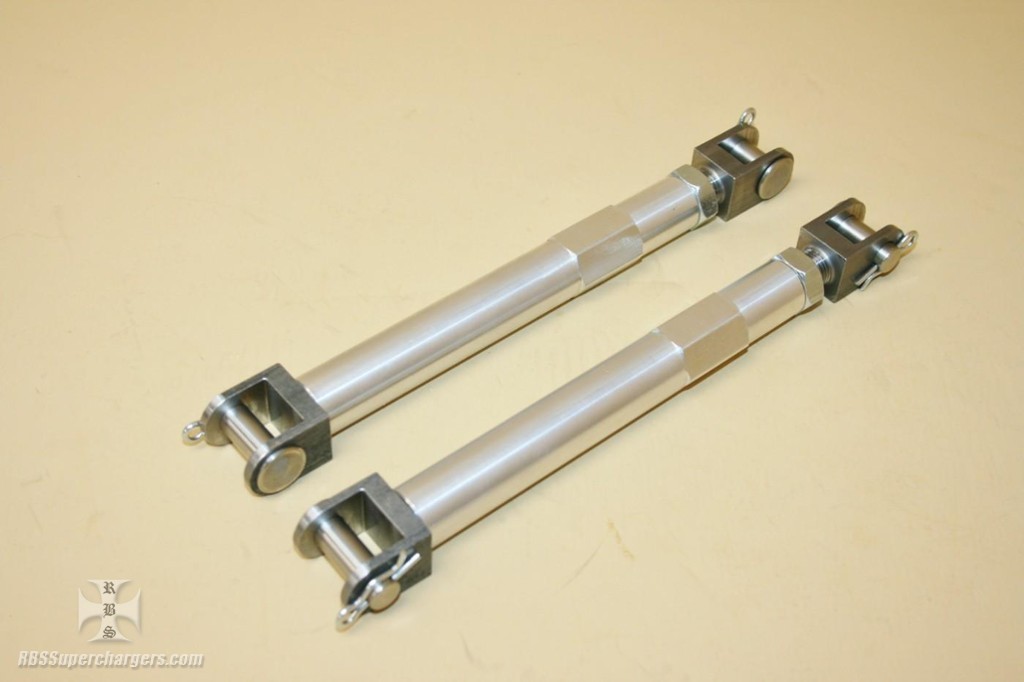

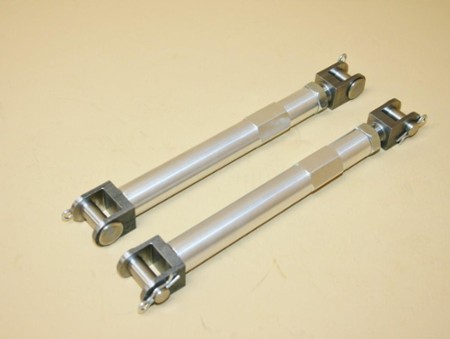

Set Back Roots Blower Snout Support Rod Set

Categories:
Superchargers
Idler Bracket
Snouts
ALAN JOHNSON

*** IN STOCK SHIPS TODAY *** For the racer that has chosen to set their roots blower back on the manifold to try and gain horsepower and even out cylinder temps here is a kit that will make the installation much easier.

Support rods are made from billet alum. and use aircraft quality quick release billet steel pin joints to allow a stable support for your set back blower application.

The part that is unique about these supports is they allow the blower to be removed for between round maintenance with out taking nuts or bolts loose or removing anything. That's right just lift the blower off and let the rods fall to the side. These rods are designed to be used with the blower snout clamp and brackets for a Hemi idler bracket that can be purchased separate if the customer chooses.

For other engines combos brackets will have to be fabricated.

Support rod adjuster bars are 6.00" long, center to center of support pins are 7.625", 8.750" turned out and have a .750" hex on the rod for easy adjusting with a wrench. Kit includes two support rods, four billet steel pins with quick pull clips, two billet steel slip fit pin ends, two 1/2-20" jam nuts and two billet steel 1/2-20" threaded pin ends.
