RCD Offset Front Pump Drive

Price:

$1205.50

Part No.: 2500-0007A

MPN: 303400-0001

Categories:
Engine
Mag Drives
Oil Pumps & Drives
RCD

*** NON-STOCKING EACH DRIVE IS SPECIAL ORDER BUILT PER CUSTOMERS APPLICATION ***

*** BUYER MUST PICK MALE HEX SIZE DRIVEN OFF CAM AND TWO FEMALE HEX SIZES FOR THE DRIVEN ACCESSORIES BEFORE TIME FRAME OF DRIVE BUILD CAN BE CONFIGURED ***

When setting up your hot rod with twin turbos or Pro Chargers room can become an issue for mounting accessories on the front of the engine. RCD has come up with this innovative drive which can be band clamped to any other drive on your engine to run two accessories off the camshaft.

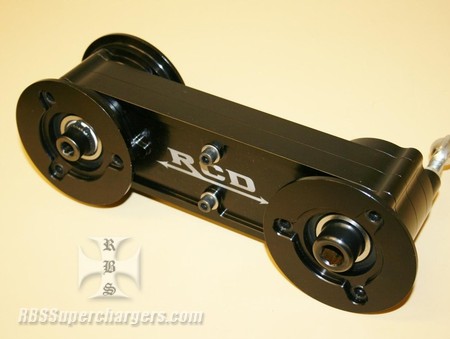

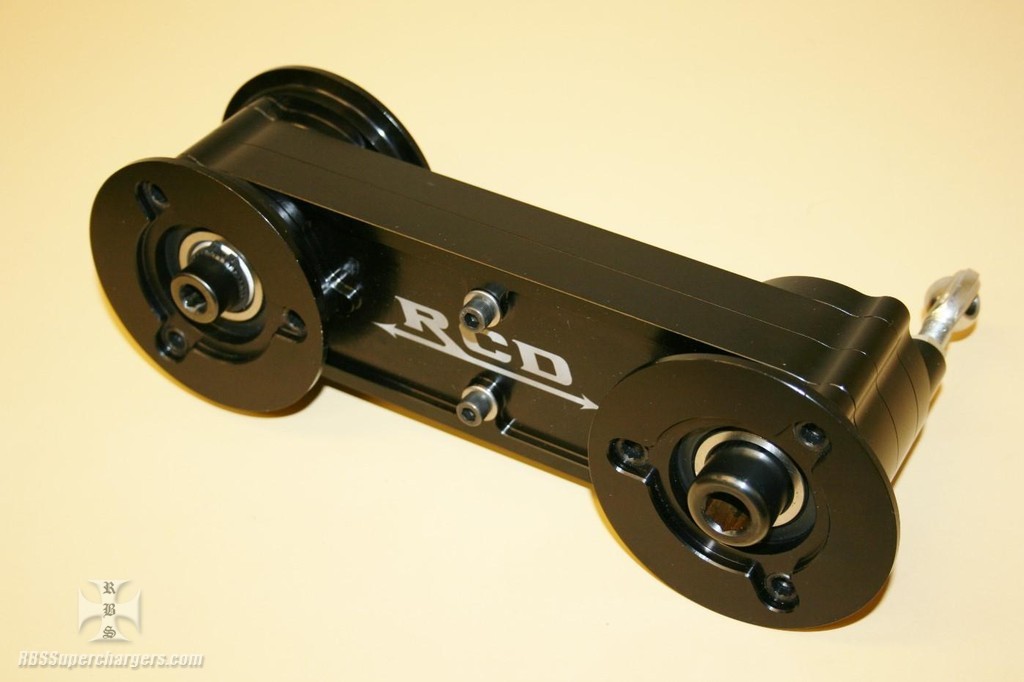

Black anodized aluminum housing contains a 1 to 1 ratio belt drive with a 7.25" offset. A rear cap with a screw in 3/8" rod end is provided to brace the drive. Heat-treated steel driveshaft's ride in hi-speed sealed ball bearings on each side of the sprocket for strength and durability. This drive can be mounted in any position you desire for clearance and it mounts using a quick release Marmon type clamp. Drive is 2.875" thick from flange to flange, weights 5.5lbs. and there are countless options of shaft sizes for the racer to choose from to make the installation a perfect fit.

Hex shaft sizes include 3/8", 7/16", 1/2" female or male which buyer can choose at time of purchase. Each drive is set-up custom per customers applications.
