Offset Mag Drive BBC/SBC Drive Shaft

Price:

Part No.:

MPN: DUN-DSCS

2500-0035A 9.800" ($140.00)
2500-0035B 10.20" ($159.95)

Categories:
Engine
Mag Drives
DUNN

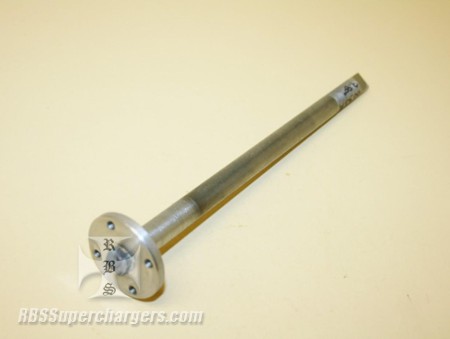

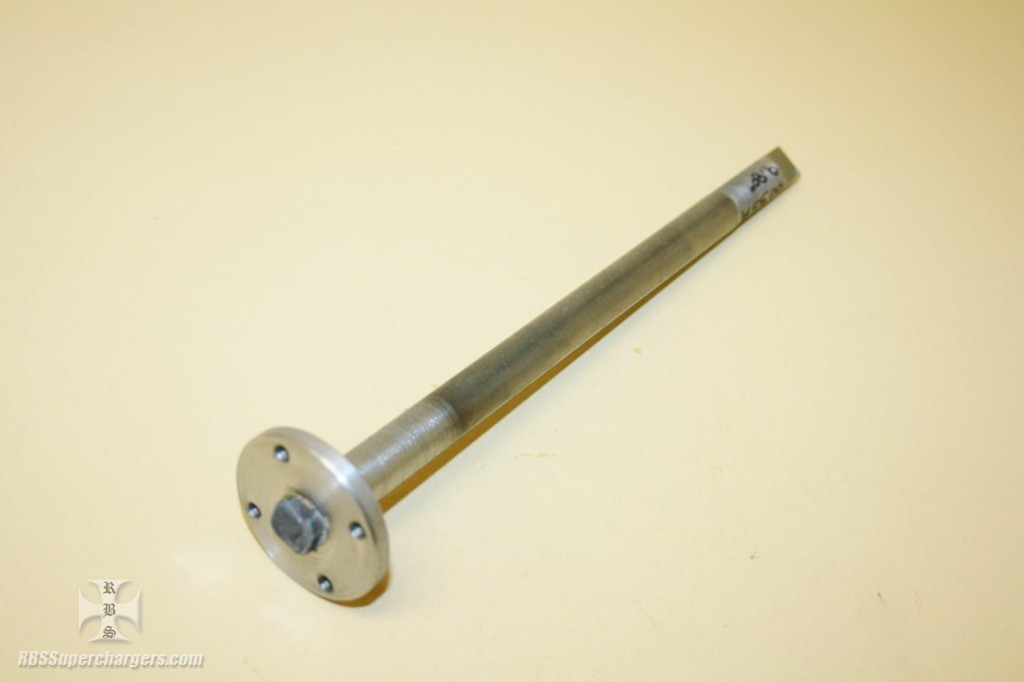

Sometimes if a racer has had engine carnage run thru the oil pump and lock it up it can twist the end of the mag drive shaft off. RBS carries a Dunn mag/oil pump driveshaft that allows the racer to repair their mag drive and get back out on the track.

Included is a bronze gear roll pin to be used with most Dunn BBC/SBC single mag offset belt drives. It uses the industry standard heat treated .500" steel shaft, turned down to .491" where the gear goes on and is .175" slot on the end to drive most all industry standard BBC/SBC oil pumps.

The pulley flange up top on the shaft is drilled 10-32 to mount the belt drive pulley to.

Racer can choose from drop down menu standard 9.800" or tall deck 10.20" driveshaft.
