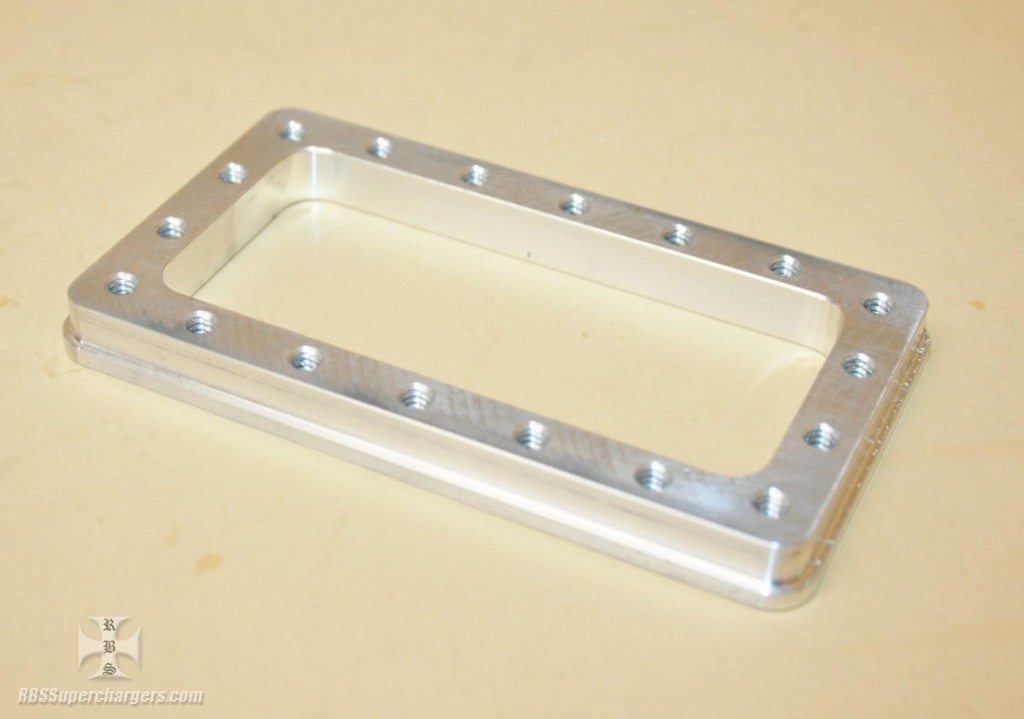

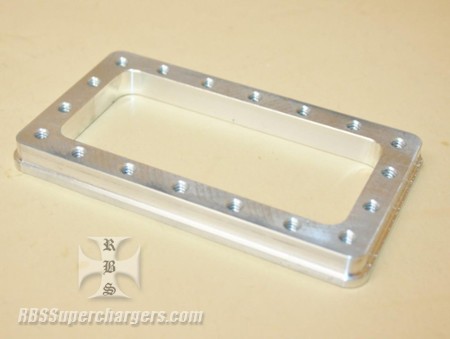

*** IN STOCK SHIPS TODAY *** RBS is proud to bring the racers this handy way to install a mini burst panel on a custom sheet metal intake. Frame is made from 6061 alum. so it can be welded on to your intake. It is machined to fit the industry standard Mini SFI burst panel and frame. So make your life simple, the eighteen 10/24" holes have already been drilled and tapped, just mount it up and your ready for some laps down the track.
Mini burst panel weld on frame dimensions are 4.375" x 2.500" x .375". Burst panel frame is CNC machined from .375" billet alum. with a .125" tall step that allows the racer a place to run a bead of weld around. Inside of frame is 3.50" x 1.625", if that holes is to large we left a few solid in the center so the racer can trim the hole out to the size that they have to work with on their intake.
Racer can specify at time of purchase solid or machined, price is the same.
