LS Outboard Support Idler Bracket Assm.

Price:

Part No.:

MPN: 156206-0030

1500-0014C LS Alum. ($849.95)
1500-0014D LS Black ($889.95)

Categories:
Superchargers
Idler Bracket
RCD

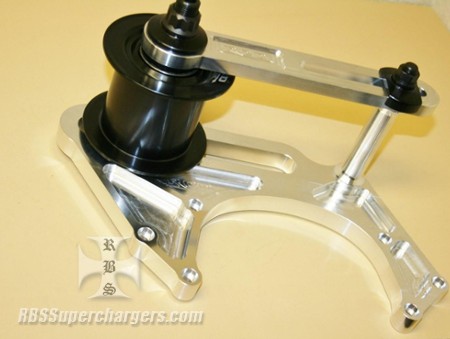

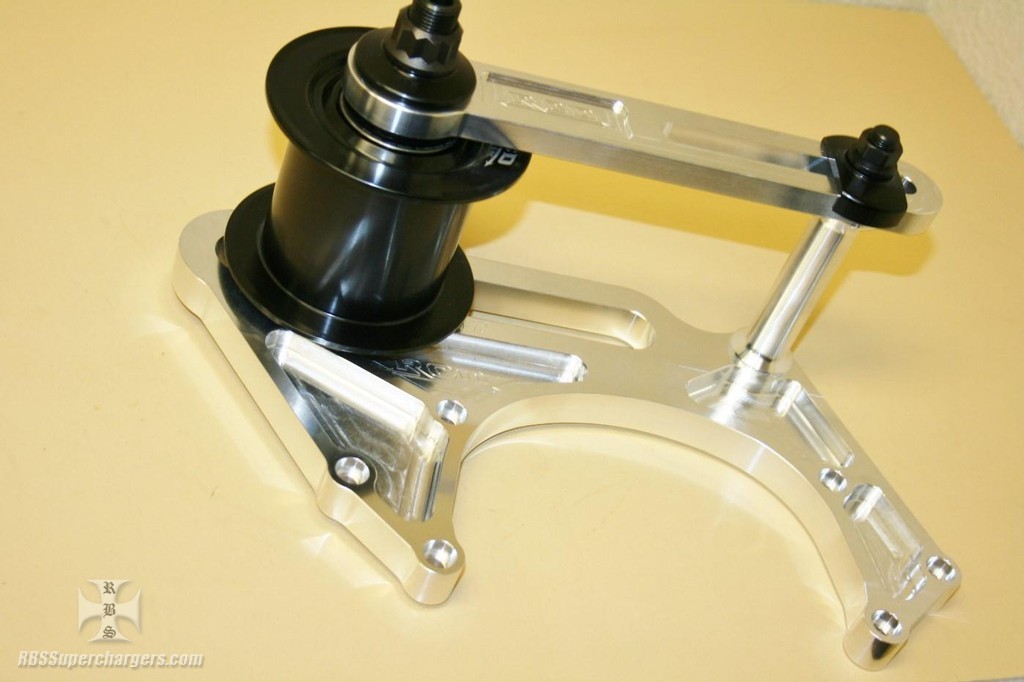

*** ALUM. FINISH IN STOCK SHIPS TODAY *** For the racer looking to build a tire shredding, redline revving blown LS engine here is the strongest idler bracket assembly on the market. Idler bracket is made from billet aluminum and is .750" thick to provide superior strength with lightning pockets to still offer lightweight for your racing application. It mounts off the water pump holes and is meant to be used for competition use.

Includes O-ringed water block spacers and heat treated mounting hardware. Bracket set up weights 8.5 pounds as seen in the pictures. Fits factory LS, Dart, CN, RHS, Noonan and most other aftermarket LS engine blocks. Uses a 8.00" adjustment slot for blower belt tensioning.

This bracket also incorporates an outboard brace to help maintain idler pulley tension and help increase blower belt life. Bracket is set up for 75mm wide RCD idler pulley. Idler pulley assm. is 3.25" diam. where the belt rides, 4.375" overall dia. and is 3.0" wide. This pulley is made from billet alum. and has been hard black anodized for wear resistance. This pulley uses high speed precision sealed bearings and is designed to be used with a .750" stud and a 1.00" T-nut.

Racer can choose from alum. or black anodized finish from drop down menu.
