Fuel Pump Extension Center Section Enderle

Categories:
Fuel System
Fuel Pump Extensions, etc
ENDERLE

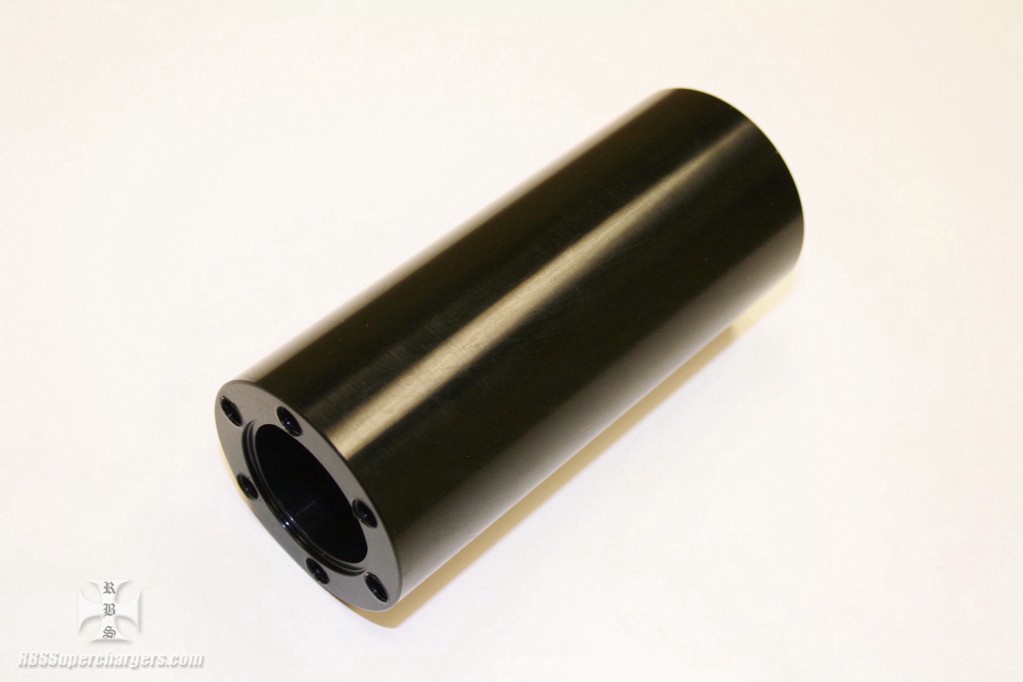

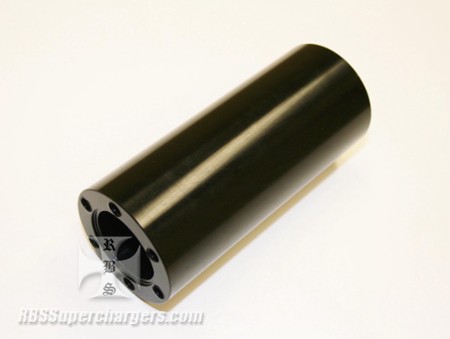

Enderle fuel pump extension center section. Made from billet alum. then black anodized with reliefs cut for the Teflon O-rings that seal the extension to prevent oil leaks. With the Enderle pump extension being a modular design it allows the racer to change out the center section in .500" increments allowing for complete adjustability with different projects.

Simply unblot the twelve 1/4" socket head bolts slide in the new center piece and BAM!!! your done. Center sections are available for 2.00" thru 6.00" in .500" increments for quick release or bolt on pump extensions.

Please specify length when ordering pump extension from drop down menu. Below is a guide to center section length to relative pump extension length.

2.00" extension, .690" center section

2.50" extension, 1.190" center section

3.00" extension, 1.690" center section

3.50" extension, 2.190" center section

4.00" extension, 2.690" center section

4.50" extension, 3.190" center section

5.00" extension, 3.690" center section

5.50" extension, 4.190" center section

6.00" extension, 4.690" center section
