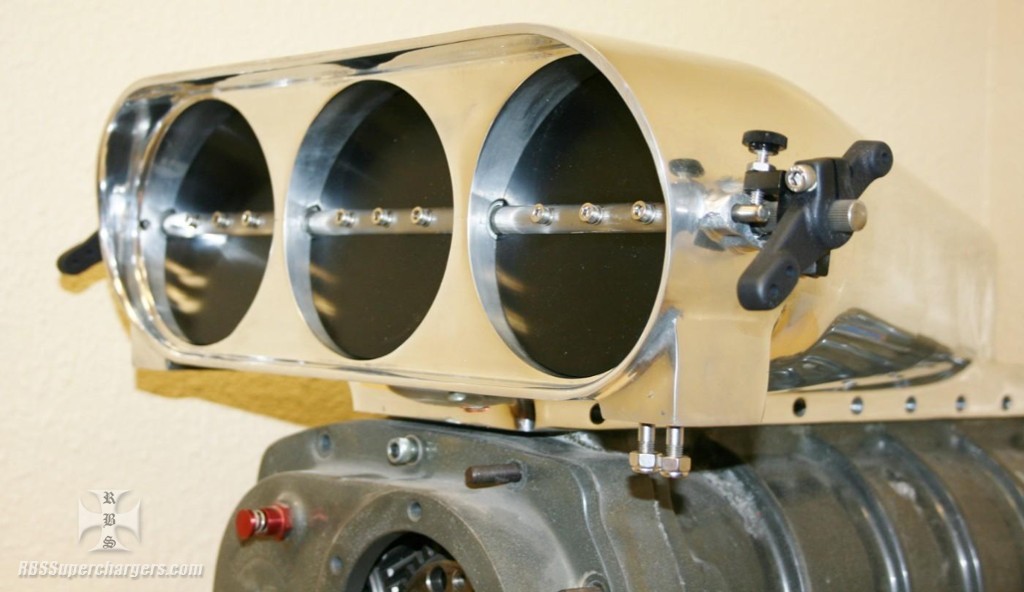

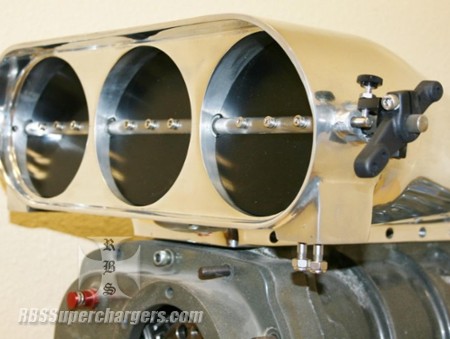

The injector is sold as seen in the pictures with a show polished alum. housing, stainless steel shaft, alum. linkage arms, serrated throttle stops and three 5.00" dia. butterflies that the racer can pick colors of their choice at no extra cost. Injector housing is machined for sixteen nozzle bodies, barrel valve mounting location as well as distribution block location.
Butterfly shaft dia. is .440" and from mounting surface to top of injector is 6.375". The opening in the injector is 4.375" x 15.00" and it mounts on the industry standard 15.250" bolt pattern common on 10-71 thru 18-71 blowers. Width of the injector is 21.00" wide. Butterfly square inch area is 59in's. Butterfly color choice is red, blue or black alum.
Injector now can be powder coated to the color of choice made by the racer. Most popular is black and keep in mind there is gloss or satin finish. Injector weights nineteen pounds as seen in the pictures.
Racer can choose options from drop down menu.
