Connecting Rod Length Checker Hemi

*** IN STOCK SHIPS TODAY *** For the racer that runs a hi-reeving alcohol or a nitro connecting rod pounding Hemi and services the parts back at the shop, this connecting rod length checker is a tool that will speed up services and ensure you are not re-installing something back in the engine that should be going to the recycle yard.

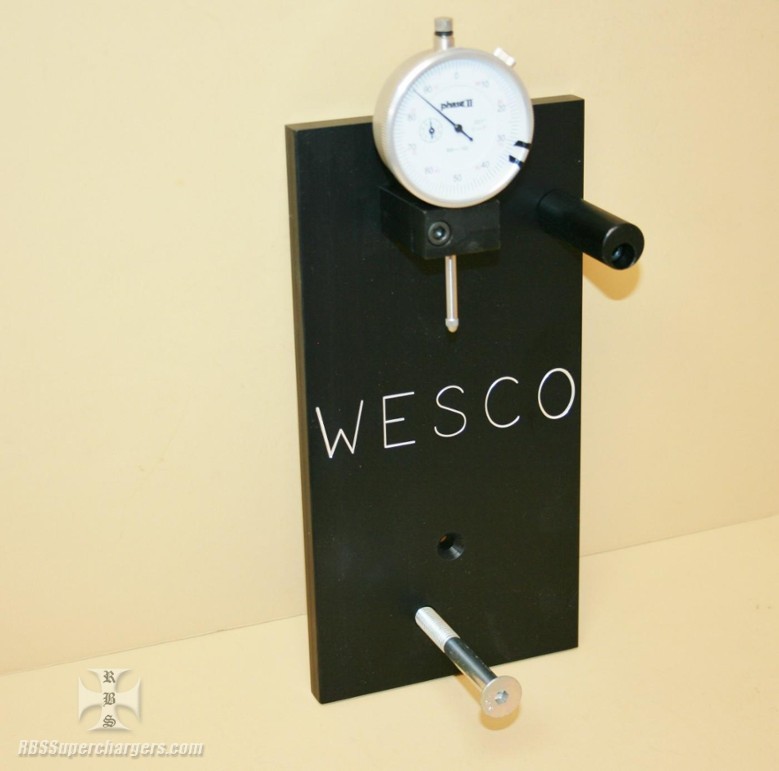

Tool base is made from .500" billet alum, includes 0 to 1" indicator that reads in .001" increments. Racer will have to supply a wrist pin, then use the supplied 3.500" flat head bolt to center up the wrist pin on the fixture. Racer can use the tool with a 1.094" or the Big Show 1.156" wrist pin to check Hemi connecting rods quickly and measure to see if the pedal job compromised the rod set or can it be serviced and put back in for another pass.

The peg to the side of the indicator is eccentric so racer can adjust to put the connecting rod on center of the indicator tip when checking length. Can be wall or bench mounted.

All alum. parts are black anodized.
