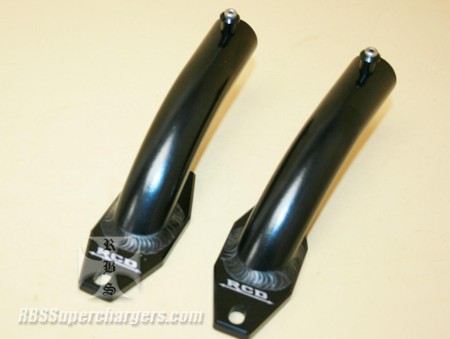

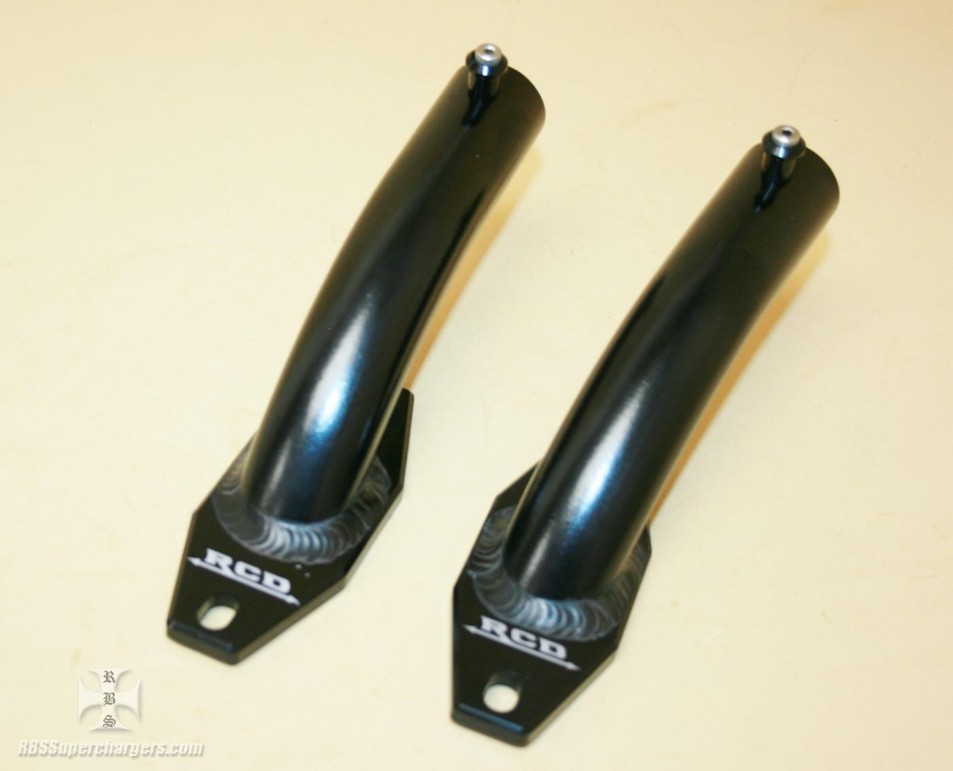

Breathers are billet aluminum where it mounts to the valve cover with two .250" fasteners on a 3.750" bolt spread. These breathers use a quick release pin that you simply pull and it snaps back in on a spring so there is no chance of losing the pin to remove the hoses so valve adjustment is made easy between rounds.
The breathers use a billet anodized hose coupler that is O-ringed to provide superior seal and the coupler accepts 1.250" hose.
Right side breather looking at the front of the engine on the magneto side is turned 10 degrees out so you can route your hose outside the magneto on a 426 type Hemi.
Burn downs are sold in a pair and hose ends are purchased separate under #2600-0015.
These breathers are 3.125" tall from mounting surface to top.
