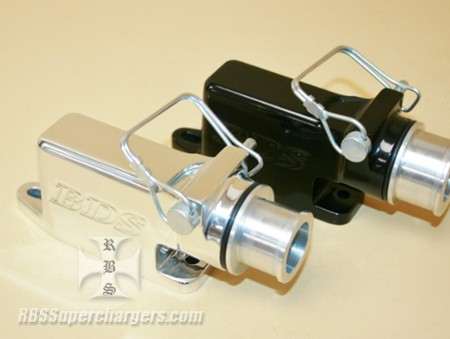

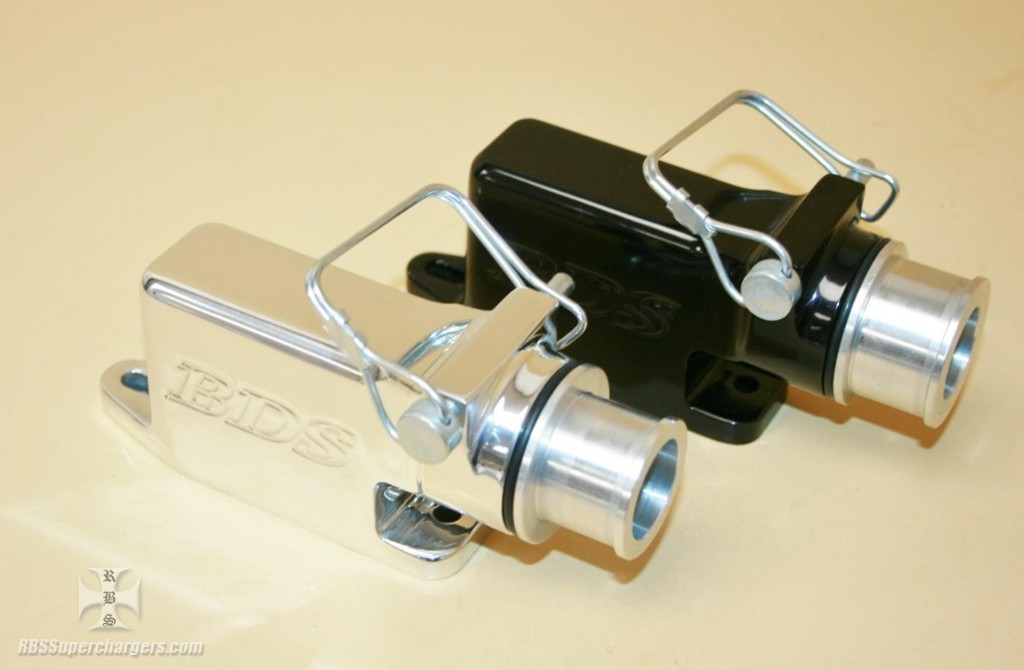

*** IN STOCK SHIPS TODAY *** These breathers are designed to help vent the engine and take away any extra unwanted contaminates to the puke tank. Breathers use a square wire lock pin that you simply unhook and pull to slide the hose end out or vice versa, slide the hose end in, push the pin thru, hook it over itself and you are ready for some tire smoking action.
Breathers are billet aluminum and have a O-ringed sealing surface where it mounts to the valve cover with two .250" fasteners on a 3.750" bolt spread. The rear hole is slotted a .500" so there is some adjustment on the bolt spread. Breathers use a billet alum. hose coupler that is double O-ringed to provide superior seal and the coupler accepts 1.250" or 1.500" slip on hose. Hose ends are all machine finished, no anodized hose ends are available at this time.
Breather is 2.50" tall from mounting surface to top of breather, 2.750" tall at the lock pin boss, hole in breather on the bottom is 2.375" x .890", hole in hose end is 1.00", burn down breather hose ends are included and breathers are sold in a pair.
Breathers are machined from a solid chunk of billet alum. and have the BDS logo machined into the side of the breathers to give a one of a kind kick ass look!!!
Racer can choose from polished or black anodized finish from drop down menu. Be sure to pick what hose ends you want from the drop down menu on the order form and RBS will be sure to fix you up with the correct hose ends.
Mounting fasteners are not included with breathers due to the many thicknesses of valve covers and different type of fasteners that a racer may want to choose from for their application.
