BDS Xcelerator Injector Adpt. D-Block

Categories:
Fuel System
Spacers & Adapters
BDS

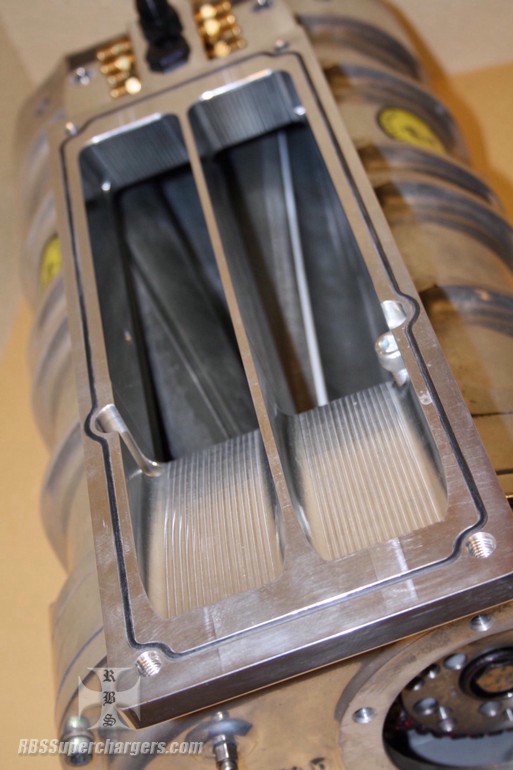

*** POLISHED OR BLACK ANODIZED IN STOCK SHIPS TODAY *** Spacer moves the injector up 2.00" and forward 4.750" and has four 1/8" pipe fuel nozzle provisions with a built in air divider to help the supercharger with a smoother air flow transition in to the blower allowing for more horsepower.

Injector spacer is made from billet alum. and can be purchased polished or black anodized to give your race engine that fierce look. It includes cad plated mounting hardware and top mounting surface is O-ringed so no gasket is needed between the injector and spacer.

This spacer fits 6-71 thru 16-71's that use the Bug, Bird and most other carbon fiber and new style alum. injectors that use the 13.250" on center bolt pattern on the top of the supercharger.

Opening in the spacer is 12.00" x 4.375" on the top and 8.50" x 4.375" on the bottom which give the racer a choice to blend the spacer to the top of their blower up to 10.50".

A nice feature of this injector spacer is that it has a eight port fuel distribution block built into the spacer which allows a racer to run four -3 fuel hoses to the spacer and four fuel hoses to blower cooling nozzles. Fuel block has a -8 AN inlet and eight -3 AN brass fittings for fuel lines.

Buyer can choose between polished or anodized finish from the drop down menu.
