BBC Gear Drive Assm. RCD

*** ALUM. OR BLACK ANODIZED IN STOCK SHIPS TODAY *** RBS is proud to bring the racers the finest BBC gear drive on the market. This gear drive starts off with a billet alum. cover that is machined from 7075-T6 to exact tolerances giving the motor it's best chance for accurate cam timing and the cover is O-ringed for a superior seal to the engine block. All gears are made from heat treated steel and are finish ground for complete concentricity.

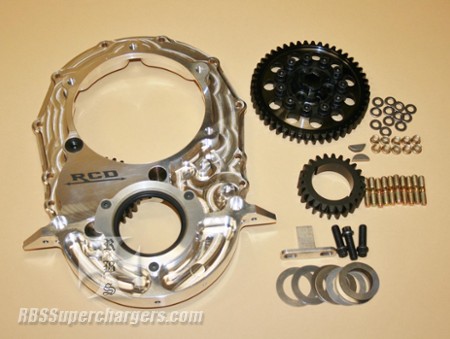

The gear set includes a dual keyway crank gear, a idler gear that has the outer race ground into it using a high speed roller needle bearing and a cam gear that uses a eleven hole vernier to dial in cam timing. Gear drive includes a mounting hardware kit, thrust bearing and washers, woodruff keys and adjustable timing pointer.

The cam hub uses a massive .625" hex shaft to drive the fuel or oil pump. This gear drive is set up to be used on a standard cam cast iron block, Rodeck, Merlin, Donovan, KB and World Product cast steel and cast aluminum engine blocks or any other aftermarket engine block that uses a standard cam on a BBC.

RBS can also supply pump extensions or cam covers per the customers needs when ordering the gear drive.

Racer can choose between alum. or black anodized from the drop down menu.

*** TIMING POINTER IS NO LONGER INCLUDED WITH GEAR DRIVE ASSM. AS SHOWN IN THE PICTURES *** TIMING POINTER CAN BE ORDERED UNDER PART NUMBER #2400-0039 *** MANY CUSTOMERS NOW USE CRANK TRIGGER WHICH MOUNTS TIMING POINTER ON CRANK TRIGGER BRACKET ***
