ATI Dampner To RCD Trigger Ring Adpt.

Categories:
Engine
Crank Hub & Degree Rings
Crank Triggers & Brackets
RCD

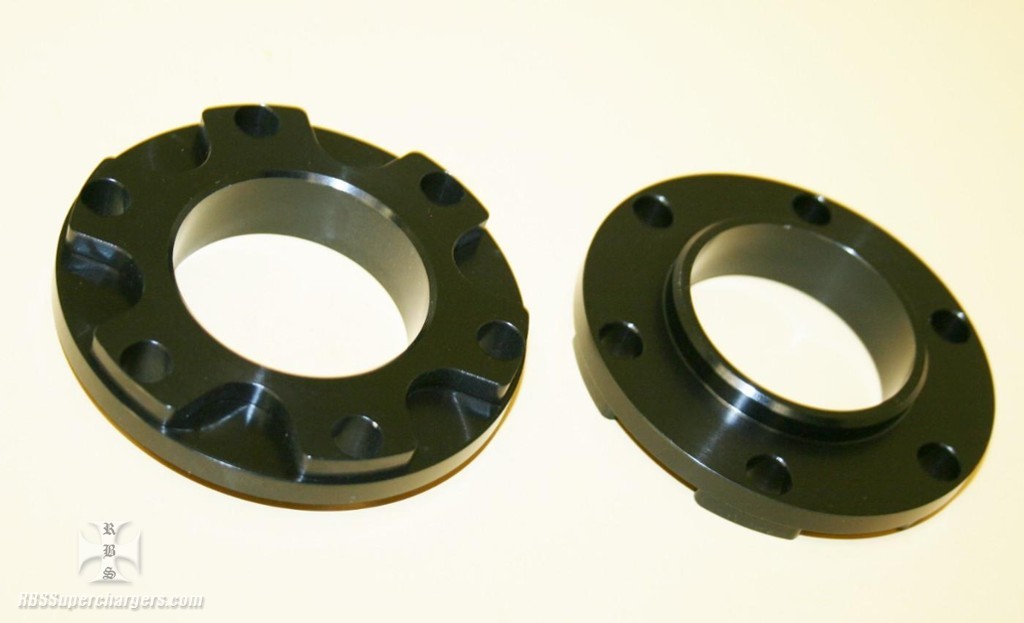

*** IN STOCK SHIPS TODAY *** For the racer that runs a harmonic dampner on their engine RCD has come to the party with this crank trigger ring to harmonic dampner adapter that allows the racer to use a four magnet crank trigger degree ring or a 12-1 magnet EFI type degree ring.

Register on the backside of the adapter is 2.275" to fit in the dampner with six 3/8" bolt holes on a 3.200" bolt circle. Bore in the center of the adapter is 2.00", spacer is .725" thick end to end, register on the backside is .250", step for trigger degree ring is .220" and thickness between degree ring surface and backside register step is .260" allowing the slight concave shape of the trigger ring to clear the harmonic dampner once it is installed on to the adapter.

Adapter is made from billet alum. and hard anodized for a durable finish.
