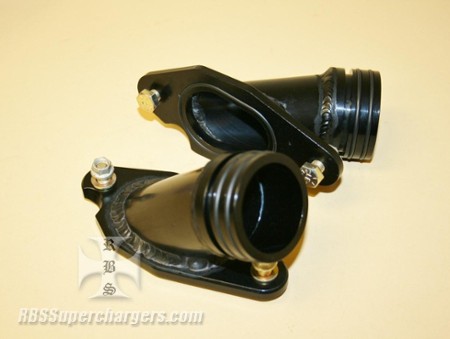

Breather pads are .250" billet aluminum where it mounts to the valve cover with two .312" fasteners on a 4.250" bolt spread as well as O-ringed under the breather pad to provide a leak proof seal to the top of the valve cover. Breathers have relief cuts for Cebe titanium Top Fuel valve covers.
Breathers use a Wiggins clamshell clamp that you simply unsnap and it snaps back on a spring so there is no chance of the clamp coming lose during a run and very quick when it is time to remove the hoses so valve adjustment is made easy between rounds.
Breathers use a billet anodized hose coupler that is O-ringed to provide superior seal and the coupler accepts 1.750" hose. Both burn down breathers are straight and ideal for a dragster, door car or a boat and are 3.125" tall from mounting surface to the top of the hose.
Burn downs are sold in a set including two breathers, mounting hardware and O-rings but a set of hose ends and clamps are sold separate and can be purchased under part #2600-0015S as well as #2600-0015E.
Burn down breather end and clamshell clamp are shown for picture purposes only and must be purchased separate.
For a complete kit order Qty. 1 #2600-0015V, Qty. 2 2600-0015S and Qty. 2 #2600-0015E.
